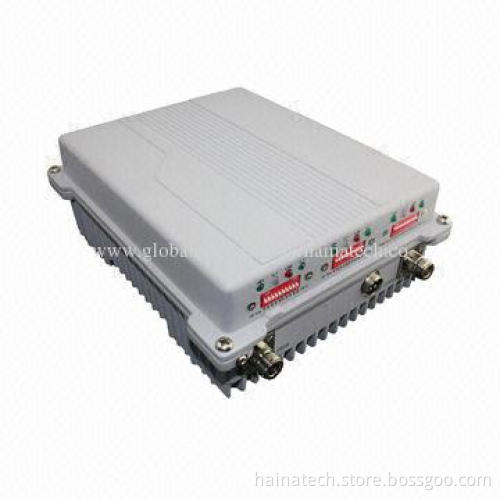

Triple System 100mW Repeater with 50 Ohms Impedance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Electrical specifications:

Bandwidth: available upon request

Output power: 20 ±2dBm

Gain: 75 ±3dB

MGC (step attenuation): ≥31/1dB step

ALC control: ≥25dB, auto-shut-off after 25dB

Gain flatness: GSM and CDMA

Gain flatness: WCDMA

Ripple in band: ≤4.0dB

Noise figure: ≤6.0dB

VSWR: ≤1.8

Spurious emission mask (WCDMA) only, meet 3GPP TS 25.143

Modulation accuracy (WCDMA): ≤12.5%

Peak code domain error (WCDMA) only: ≤-35dB at spreading factor 256

ACRR (WCDMA): ≥45/5, ≥50dBc/10MHz

Transmission delay: ≤5µS (≤1.5µS, wide band)

Intermodulation: ≤-45dBc

Maximum non-destructive input power: -10dBm

Impedance: 50Ω
