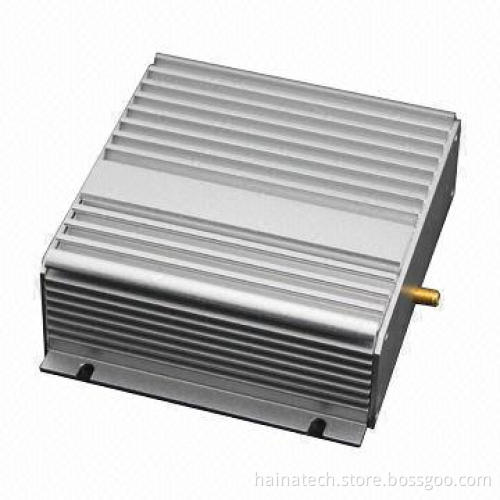

Single system wide band repeater, intelligent monitoring, automatic alarm & supports remote control

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Bandwidth: Wide band

Output power: 17±1dBm

Gain: 55±3dB

MGC: 30dB in step of 1dB

ALC control: ≥20 dB, auto shut off after 20 dB

Ripple in band: GSM900, ≤5dB

Noise figure: ≤5.0dB

VSWR: ≤1.8

Spurious emission:

Intermodulation: ≤-36dBc

Mechanical specifications

9KHz - 1GHz: ≤-36dBm/100KHz

1GHz - 12.75GHz: ≤-30dBm/1MHz

I/O impedance: 50Ω

RF connector: N-Female/SMA

Dimensions approx.: 135×115×35mm

Weight approx.: 0.5kg

Power supply: AC： 100V - 240V, DC： 5V

Color: Silver
