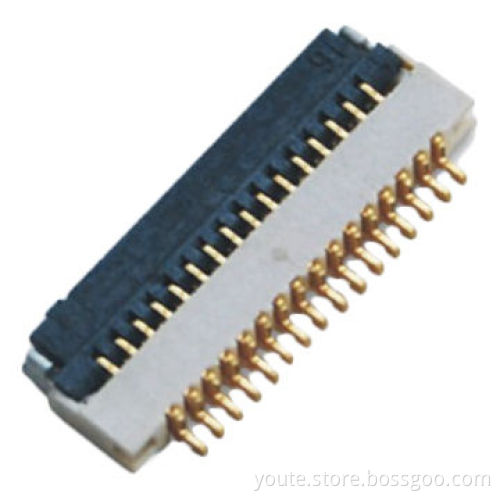

FPC Connector, 0.5mm, H=1.0, Flip Type
  • FPC Connector, 0.5mm, H=1.0, Flip Type
FPC Connector, 0.5mm, H=1.0, Flip Type

FPC Connector, 0.5mm, H=1.0, Flip Type

Get Latest Price
Payment Type:
L/C, T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T or Western Union
Product Description
Product Description
  • Material specifications:
    • Poles: 6-30
    • Housing: high temperature thermoplastic, (LCP/ PA46/ PPS),UL9V-0 rated
    • Contact: phosphor bronze, tin-lead plated
    • Fitting nail: brass
    • Contact and connecting options:
      • Top contact
      • Bottom contact
      • Flip type bottom contact
    • Tail construction type: SMD type
    • Standard package: cube, then put into strongcarton
  • Electrical performance:
    • Voltage rating: 50V AC/DC
    • Current rating: 0.4A AC/DC (maximum)
    • Withstand voltage: 200V AC/minute
    • Insulation resistance: 500M© (minimum)
    • Contact resistance: 20M© (maximum)
    • Dielectric strength: 250V AC for 1 minute between adjacentterminal, no breakdown
    • Insulation resistance: 50M© (minimum), 250V DC for 1minute between adjacent terminal
    • Contact resistance: 40m© (maximum)
    • Operating temperatures: -25-85°C
  • Poles: 6-30
  • Housing: high temperature thermoplastic, (LCP/ PA46/ PPS),UL9V-0 rated
  • Contact: phosphor bronze, tin-lead plated
  • Fitting nail: brass
  • Contact and connecting options:
    • Top contact
    • Bottom contact
    • Flip type bottom contact
  • Tail construction type: SMD type
  • Standard package: cube, then put into strongcarton
  • Top contact
  • Bottom contact
  • Flip type bottom contact
  • Voltage rating: 50V AC/DC
  • Current rating: 0.4A AC/DC (maximum)
  • Withstand voltage: 200V AC/minute
  • Insulation resistance: 500M© (minimum)
  • Contact resistance: 20M© (maximum)
  • Dielectric strength: 250V AC for 1 minute between adjacentterminal, no breakdown
  • Insulation resistance: 50M© (minimum), 250V DC for 1minute between adjacent terminal
  • Contact resistance: 40m© (maximum)
  • Operating temperatures: -25-85°C
