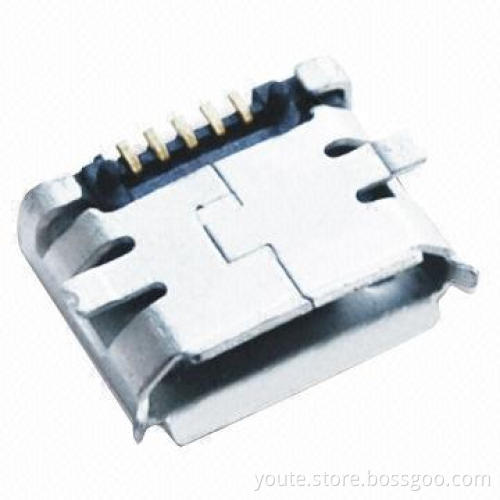

2.0 Micro USB Connector, 5P-F SMT B-type, 1.5A at 250V AC Rated Voltage and Current

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T or Western Union

Product Description

Materials:

Shell: C2680H, T = 0.30, Ni-plated
Terminal: C5191H, T = 0.25, gold plating on contact area, tinplating on solder area
Housing: PBT + GF30% black/white

Mechanical and electrical:

Shell: C2680H, T = 0.30, Ni-plated

Terminal: C5191H, T = 0.25, gold plating on contact area, tinplating on solder area

Housing: PBT + GF30% black/white

Contact resistance: 30m Ohms (maximum)

Insulation resistance: 1,000M Ohms minimum at 500V DC

Rated voltage and current: 1.5A at 250V AC (minimum)

Dielectric withstanding voltage: 500V AC (rms) for 1minute

Durability (life test): 1,500 cycles

Insertion force: 35 newton (maximum)

Extraction force: 10 newton (maximum)
