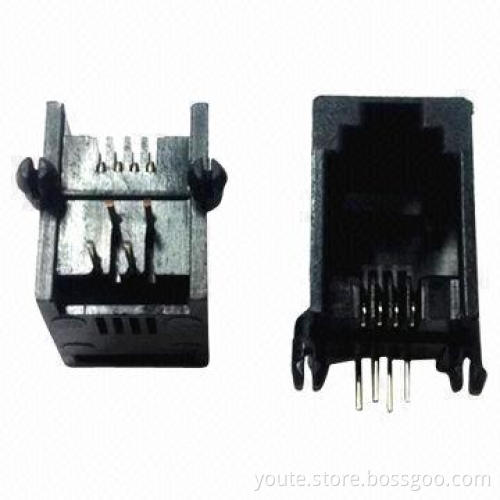

RJ11 Modular Plugs, 4P4C Black Fu with 120V AC Voltage Rating and 1.5A Current Rating
- Payment Type:
- Telegraphic Transfer (TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Telegraphic Transfer (TT,T/T) |
|---|
Product Description
Product Description
- Insertion force:
- 2 x contacts: 350g
- 4 x contacts: 500g
- 6 x contacts: 750g
- 8 x contacts: 900g
- 10 x contacts: 1050g
- Cable to plug tensile strength: 7.7kg minimum
- Durability: 750 mating cycles minimum
- Housing:
- Glass filled PA66 (UL94V-0)
- Glass filled PA46 (UL94V-0)
- Glass filled PBT (UL94V-0)
- Spring wire:
- 0.45mm diameter phosphor bronze gold plating over nickel
- 0.35mm thickness phosphor bronze alloy
- Shielding: 0.2mm thickness copper alloy with tin plated
- Gold plating: 3, 6, 15, 30, 50μ-inch
- Current rating: 1.5A
- Voltage rating: 120V AC
- Insulation resistance: 500mΩ (minimum)
- Withstanding resistance: 1,500V AC RMXS 50 or 60Hz 1 minute
- Contact resistance: 20mΩ (maximum)
- Storage temperature: -10-40°C
- Relative humidity: Operating temperature: -40 to +70°C
- 2 x contacts: 350g
- 4 x contacts: 500g
- 6 x contacts: 750g
- 8 x contacts: 900g
- 10 x contacts: 1050g
- Glass filled PA66 (UL94V-0)
- Glass filled PA46 (UL94V-0)
- Glass filled PBT (UL94V-0)
- 0.45mm diameter phosphor bronze gold plating over nickel
- 0.35mm thickness phosphor bronze alloy
