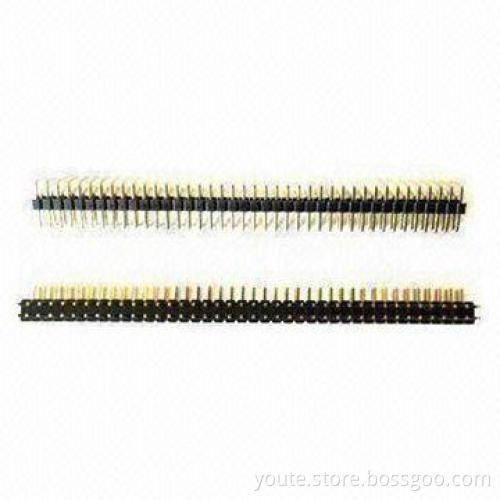

2.0mm Pin Headers, Dual and Single Row, with 2.0A Current Rating
- Payment Type:
- L/C, T/T or Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C, T/T or Western Union |
|---|
Product Description
Product Description
- Straight or right angle version
- Materials:
- Insulator: polyester (UL94V-0), PBT + 30% GF standard
- Contact: brass, phosphor bronze
- Contact plating: Au or Sn over 50μ Ni
- Terminal: Y-type
- Current rating: 2.0A
- Height: 1.0, 1.5 and 2.0mm
- Maximum contact resistance: 20MΩ
- Minimum insulation resistance: 1,000MΩ
- Withstanding voltage: 500V AC
- Operating temperature: -40 to +105°C
- Dual-row and plastic
- Insulator: polyester (UL94V-0), PBT + 30% GF standard
- Contact: brass, phosphor bronze
- Contact plating: Au or Sn over 50μ Ni
