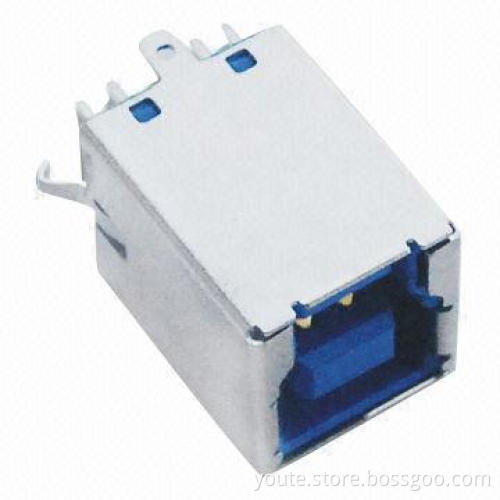

90 Degrees BF USB3.0 Connector, 30V AC/DC Voltage Rated
- Payment Type:
- L/C, T/T or Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C, T/T or Western Union |
|---|
Product Description
Product Description
- Materials:
- Housing: high-temperature thermoplastic, UL94V-0 rated
- Contact: brass or copper alloy
- Plating: gold plating over nickel
- Shell: steel main
- USB version: 3.0
- Electrical performance:
- Voltage rated: 30V AC/DC
- Current rated: 1.0A AC/DC (maximum)
- Dielectric strength: 100V AC for 1 minute between adjacent terminal, no breakdown
- Insulation resistance: 100m Ohms (minimum) 100V DC for 1 minute between adjacent terminal
- Contact resistance: 50m Ohms (maximum)
- Operating temperature: -25-85°C
- Product series: B-USB3.0, C-micro USB3.0
- M/F: 3-male (for type A), 4-female (for type A), 5-male (for type B)
- Classify:
- Plastic color: Shell: 1-C2680/Ni-plated, 2-C2680/Au plated, 3-Spcc/Ni-plated
- Crimping: 0-W/o crimping, 1 with crimping
- Packing: 0-tray, 1-tube, 2-tape and reel with Mylar, 3-tape and reel with Mylar
- Plating: 1 gold flash/tin, 2-3u-inch gold/tin, A-gold flash
- Sequence code
- Plastic color: Shell: 1-C2680/Ni-plated, 2-C2680/Au plated, 3-Spcc/Ni-plated
- Housing: high-temperature thermoplastic, UL94V-0 rated
- Contact: brass or copper alloy
- Plating: gold plating over nickel
- Shell: steel main
- Voltage rated: 30V AC/DC
- Current rated: 1.0A AC/DC (maximum)
