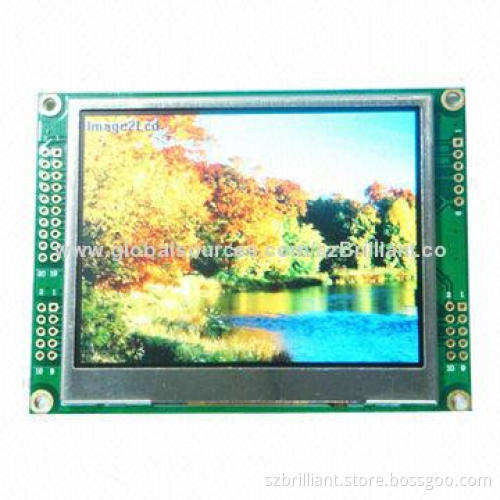

3.5-inch TFT Color LCD Display Panel, Support MCU Interface and I2C or 3 Wire, 4 Wire, SPII/F

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Resolution: 320 (RGB) x 240P

Driver element: A-si TFT active matrix

DD RAM: embedded 768kb

Input voltage: 5.0 and 3.3V DC

Color depth: 65K color

Interface: 8, 080/6, 800/SPI/IIC

Viewing angle: 70/70 (L/R), 50/70 degrees (U/D)

Contrast: 500: 1

Backlight: high-brightness LED backlight, minimal life time 20,000-hour

LCD brightness: 250CD/m²

C51 MCU

Operating temperature: -20 to +70ºC

Storage temperature: -30 to +80ºC

LCD PCB LED backlight controller

Resistive touch panel
