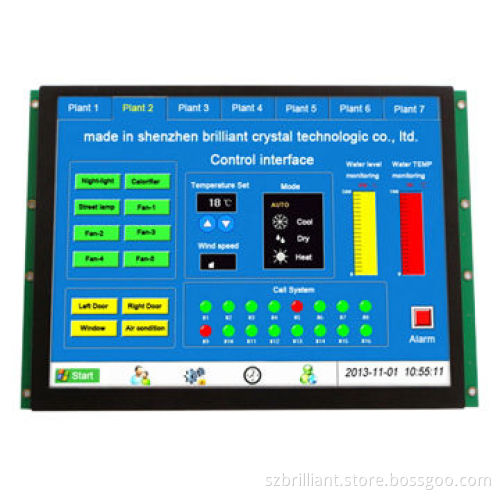

10.4-inch TFT LCD module with embedded 4-wire resistive touch panel controller, 800x600 resolution

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Size: 10.4 inches

Resolution: 800x600 dots matrix

View display area: 212.35mmx159mm

Active view area: 211.2mmx158.4mm

Module size: 247.4x177mm

Height: 27.5mm

Display colors: 64K colors

LED backlight type: LED

Brightness: 250cd/m2

View angles: L/R/U/D:70°/70°/50°/70°

Operate temperatures: -20~70℃

Storage temperatures: -30~80℃

Interfaces: RS232/RS485/TTL UART

Picture download mode: USB download mode

1Function: Set current palette, set the character display spacing, take a color from specific location, cursor display, text display, choose the character library display, character zoom in display, set/ cancel the limitation for textbox display point, line display, line chart display, ellipse and ellipse area operate, circular curve display, rectangle and rectangular region display, dynamic curve display, clear full screen, picture/icon display and so on
