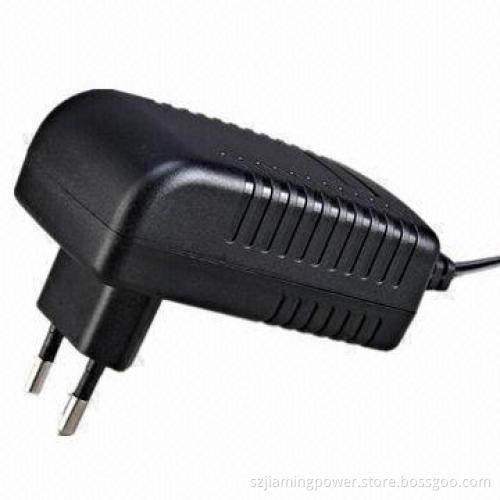

AC/DC Adapter, Switching Power Supply, 90 to 264V AC Input Voltage Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Key specifications/special features:

Output specification:

Line regulation:

Efficiency:

Environment:

Safety certifications: GS/UL, PSE, CB, C-TICK and CE

RoHS Directive-compliant

Output voltage: 3, 5, 6, 7, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 and 24V

Output current: 100, 200, 300, 400 to 1000, 2000, 3000, 4000 and 5000mA

Low energy consumption with high capacity and efficiency

Pass CEC IV

EMI/EMC reaches FCC3, CISPR B standard

All products are 100% full load burn-in test

AC input voltage (normal): 100 to 240V AC

AC input voltage range: 90 to 264V AC

Output voltage: 12V DC

Output current: 2A DC

Measured by varying line voltage: from 90 to 264V AC

Specifications: ±5% (11.4 to 12.6V)

Over-current protection

Over-voltage protection

Short-circuit protection

Standard situation: 75%, CEC up to 79%

Voltage regulation: ±5%

Leak ground electric current safely largest: 0.1mA

Ripple and noise: 1% p-p is largest

Working temperature: -10 to 70°C

Storage temperature: -40 to +85°C
