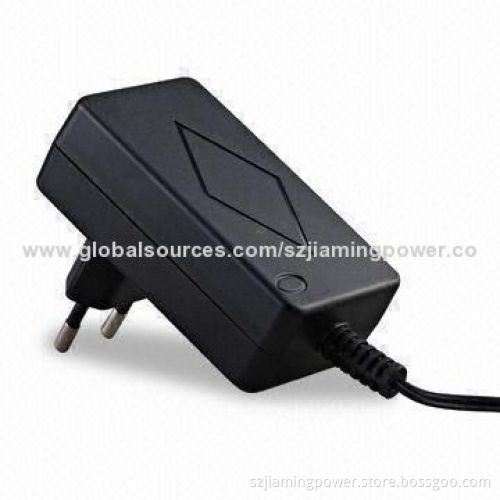

Power Supply with 12V DC Output Voltage, Measures 78 x 45 x 27mm
  • Power Supply with 12V DC Output Voltage, Measures 78 x 45 x 27mm
Power Supply with 12V DC Output Voltage, Measures 78 x 45 x 27mm

Power Supply with 12V DC Output Voltage, Measures 78 x 45 x 27mm

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Input:
    • Voltage rang:e: 90 to 264V AC and 135 to 370V DC
    • Frequency range: 47 to 63Hz
    • AC current: 0.5A/100VAC
    • Inrush current: 40A/230V AC (maximum)
  • Output:
    • DC voltage: 12V
    • Rated current: 2A
    • Rated power: 24W (maximum)
    • Ripple and noise: 120mVp-p (maximum)
    • Voltage tolerance: ± 5%
    • Line regulation: ± 1%
    • Load regulation: ± 5%
  • Others:
    • Dimensions: 78 x 45 x 27mm
    • Weight: 115g
  • Voltage rang:e: 90 to 264V AC and 135 to 370V DC
  • Frequency range: 47 to 63Hz
  • AC current: 0.5A/100VAC
  • Inrush current: 40A/230V AC (maximum)
  • DC voltage: 12V
  • Rated current: 2A
  • Rated power: 24W (maximum)
  • Ripple and noise: 120mVp-p (maximum)
  • Voltage tolerance: ± 5%
  • Line regulation: ± 1%
  • Load regulation: ± 5%
  • Dimensions: 78 x 45 x 27mm
  • Weight: 115g
