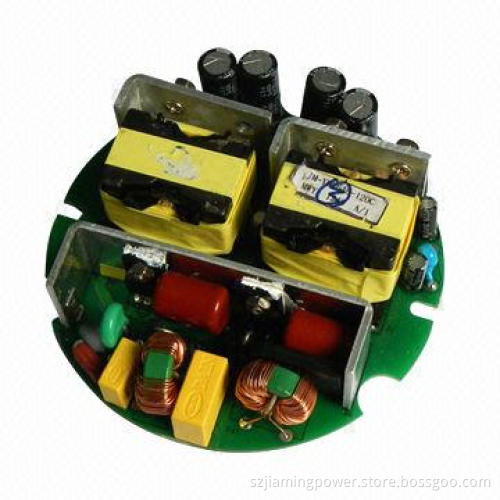

80W Corn Light LED Driver

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

With high-power factor and efficiency and is used for LED corn light and more
It meet UL, CE, TUV, RoHS compliant

Parameters:

Input voltage: 100 to 240V AC
Input frequency: 47 to 63, 50/60Hz (rated)
Output voltage: 38 to 50V DC
Output constant current: 900mA (typical)
Current precision: 5%
Power factor: >0.97 (at 110V AC full load), >0.91 (at 220V AC full load)
Efficiency: 86% (at 110V AC full load), >87% (at 220V AC full load)
Current THD:
Protections:
- Output short-circuit protection: burp, automatic recovery
- Output open circuit protection: output voltage
- Environment requirement:
  - Operating temperature: -20 to 65 degrees Celsius
  - Operating humidity: 10 to 90% RH
  - Storage temperature: -30 to 65 degrees Celsius
- Reliability requirement:
  - Burn-in test: at least 4 hours burn-in test under 45 degrees Celsius
  - Voltage standing test under 3,750V from input to output ends, time 8 seconds
- EMC standard:
  - Standard EMI: EN55015, EN55022
  - Standard EMS: lightning surge immunity
  - Meets the norm of IEC-61000-4-5 level 2, L-N, 1kV, 5 times no function error
- Electric fast transient immunity: meets the norm of IEC-61000-4-4 level 4, L-N 4kV, 2.5kHz, 1 minute no function error
- Safety standards:
  - Dielectric strength: from input to output, >5mA @ 1 minute, 3,750V AC
  - Standards: IEC60598-1.2008, GB7000.1-2007
  - Insulation resistance: from input to output, >MΩ @ 500V DC
  - Standards: IEC60598-1.2008, GB7000.1-2007
  - Electric safety space: L/N space >3mm
  - Space between the primary to the secondary coils: >6.5mm
  - Space between the fuse and the bond pad >3mm
- Weight: 115g
- Size (D x H): 72 x 30.6mm

With high-power factor and efficiency and is used for LED corn light and more

It meet UL, CE, TUV, RoHS compliant

Input voltage: 100 to 240V AC

Input frequency: 47 to 63, 50/60Hz (rated)

Output voltage: 38 to 50V DC

Output constant current: 900mA (typical)

Current precision: 5%

Power factor: >0.97 (at 110V AC full load), >0.91 (at 220V AC full load)

Efficiency: 86% (at 110V AC full load), >87% (at 220V AC full load)

Current THD:

Protections:

Output short-circuit protection: burp, automatic recovery
Output open circuit protection: output voltage
Environment requirement:
- Operating temperature: -20 to 65 degrees Celsius
- Operating humidity: 10 to 90% RH
- Storage temperature: -30 to 65 degrees Celsius
Reliability requirement:
- Burn-in test: at least 4 hours burn-in test under 45 degrees Celsius
- Voltage standing test under 3,750V from input to output ends, time 8 seconds
EMC standard:
- Standard EMI: EN55015, EN55022
- Standard EMS: lightning surge immunity
- Meets the norm of IEC-61000-4-5 level 2, L-N, 1kV, 5 times no function error
Electric fast transient immunity: meets the norm of IEC-61000-4-4 level 4, L-N 4kV, 2.5kHz, 1 minute no function error
Safety standards:
- Dielectric strength: from input to output, >5mA @ 1 minute, 3,750V AC
- Standards: IEC60598-1.2008, GB7000.1-2007
- Insulation resistance: from input to output, >MΩ @ 500V DC
- Standards: IEC60598-1.2008, GB7000.1-2007
- Electric safety space: L/N space >3mm
- Space between the primary to the secondary coils: >6.5mm
- Space between the fuse and the bond pad >3mm
Weight: 115g
Size (D x H): 72 x 30.6mm
