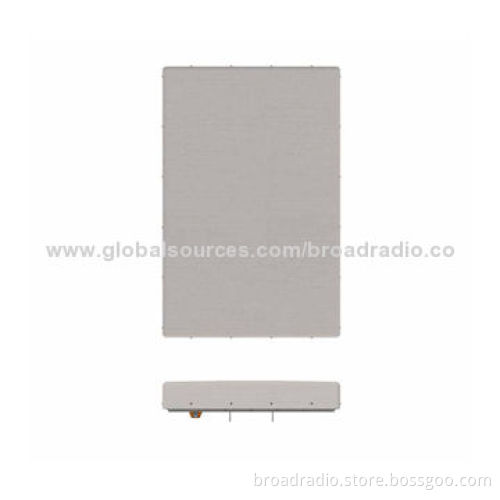

VVV Pol Panel 790-960 1710-2170 2300-2690 50/50/50 degree10/10/10dBi 0degree F Base Station Antenna
  • VVV Pol Panel 790-960 1710-2170 2300-2690 50/50/50 degree10/10/10dBi 0degree F Base Station Antenna
  • VVV Pol Panel 790-960 1710-2170 2300-2690 50/50/50 degree10/10/10dBi 0degree F Base Station Antenna
VVV Pol Panel 790-960 1710-2170 2300-2690 50/50/50 degree10/10/10dBi 0degree F Base Station Antenna
VVV Pol Panel 790-960 1710-2170 2300-2690 50/50/50 degree10/10/10dBi 0degree F Base Station Antenna

VVV Pol Panel 790-960 1710-2170 2300-2690 50/50/50 degree10/10/10dBi 0degree F Base Station Antenna

Get Latest Price
Payment Type:
T/T, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, PayPal, Western Union
Product Description
Product Description
  • VVV Pol panel: 790-960/1,710-2,170/2,300-2,690, 50°/50°/50° 10/10/10dBi 0° F
  • RF specifications:
    • Frequency range (MHz): 790-960  1710-2170  2300-2690
    • Gain (dBi): >9.5
    • Return loss (dB): >14 (VSWR <1.5)
    • Polarization: Single polarized
    • Horizontal beamwidth (°): 50 (3dB), <90(20dB)
    • Vertical beamwidth (°): 50 (3dB), <90(20dB)
    • Horizontal sidelobe suppression (dB): (deviating from the axially azimuth: >|± 45°|)> 20
    • Vertical sidelobe suppression (dB): (deviating from the axially azimuth >|± 45°|)> 20
    • Preset tilt (°): 0
    • Front to back ratio (dB): >25
    • Power rating (W): 50
    • Inter-modulation (dBm): -107(@2x43dBm)
    • Impedance (ohm): 50
    • Lightning protection: DC grounded
    • Connector type: 1x 7/16 DIN female
  • Mechanical data:
    • Antenna dimensions (mm): 884 x 1350 x 137
    • Antenna weight(kg): 28
    • Radome material: UV-ASA
    • Pole diameter (mm): 75-110
    • Mounting options: Fixed  and adjustable clamps
  • Environmental ratings:
    • Humidity: 95% RH@30℃
    • Temperatures: -40~70℃
    • Anti-ice capacity (mm): 10
    • Rated wind velocity (km/h): 160 (working)
    • Rain resistance (mm/h): 140
  • Frequency range (MHz): 790-960  1710-2170  2300-2690
  • Gain (dBi): >9.5
  • Return loss (dB): >14 (VSWR <1.5)
  • Polarization: Single polarized
  • Horizontal beamwidth (°): 50 (3dB), <90(20dB)
  • Vertical beamwidth (°): 50 (3dB), <90(20dB)
  • Horizontal sidelobe suppression (dB): (deviating from the axially azimuth: >|± 45°|)> 20
  • Vertical sidelobe suppression (dB): (deviating from the axially azimuth >|± 45°|)> 20
  • Preset tilt (°): 0
  • Front to back ratio (dB): >25
  • Power rating (W): 50
  • Inter-modulation (dBm): -107(@2x43dBm)
  • Impedance (ohm): 50
  • Lightning protection: DC grounded
  • Connector type: 1x 7/16 DIN female
  • Antenna dimensions (mm): 884 x 1350 x 137
  • Antenna weight(kg): 28
  • Radome material: UV-ASA
  • Pole diameter (mm): 75-110
  • Mounting options: Fixed  and adjustable clamps
  • Humidity: 95% RH@30℃
  • Temperatures: -40~70℃
  • Anti-ice capacity (mm): 10
  • Rated wind velocity (km/h): 160 (working)
  • Rain resistance (mm/h): 140
