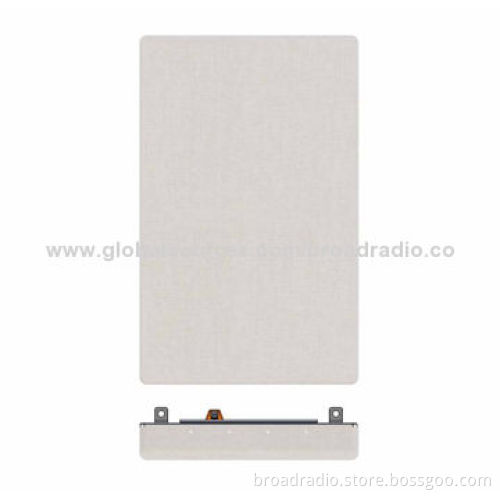

VVV Pol Panel 824-960/1710-2170/2300-2500MHz, 10/10/10dBi0-20 degree F Base Station Antenna
  • VVV Pol Panel 824-960/1710-2170/2300-2500MHz, 10/10/10dBi0-20 degree F Base Station Antenna
  • VVV Pol Panel 824-960/1710-2170/2300-2500MHz, 10/10/10dBi0-20 degree F Base Station Antenna
VVV Pol Panel 824-960/1710-2170/2300-2500MHz, 10/10/10dBi0-20 degree F Base Station Antenna
VVV Pol Panel 824-960/1710-2170/2300-2500MHz, 10/10/10dBi0-20 degree F Base Station Antenna

VVV Pol Panel 824-960/1710-2170/2300-2500MHz, 10/10/10dBi0-20 degree F Base Station Antenna

Get Latest Price
Payment Type:
PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: PayPal
Product Description
Product Description
  • VVV pol panel 824-960/1,710-2,170/2,300-2,500 50°/50°/50° 10/10/10dBi 0-20° T
  • RF specifications:
    • Frequency range (MHz): 824-960, 1,710-2,170  2,300-2,500
    • Gain (dBi): >9.5
    • Return loss (dB): >14 (VSWR <1.5)
    • Polarization: Vertical polarization
    • Horizontal beamwidth (°): 50 (3dB), <90 (20dB)
    • Vertical beamwidth (°): 50 (3dB), <90(20dB)
    • Horizontal sidelobe suppression (dB): (deviating from the axially azimuth >|± 45°|）> 20
    • Vertical sidelobe suppression (dB): (Deviating from the axially azimuth >|± 45°|）> 20
    • Electrical downtilt (°): 0-20
    • Front to back ratio (dB):>30
    • Power rating (W): 50
    • Inter-modulation (dBm): -107
    • Impedance (ohm): 50
    • Lightning protection: DC grounded
    • Connector type: 1x 7/16 DIN female
  • Mechanicla data:
    • Antenna dimensions (mm): 1,359 x 852 x 140
    • Packing size(mm): 1,480 x  960 x 240
    • Antenna weight (kg): 30.5
    • Radome material: Polyester fibreglass pultrusion
    • Pole diameters (mm): 75-110
    • Mounting options:Fixed Fastening clamp
  • Environmental ratings:
    • Humidity: 95% RH@30℃
    • Temperatures (℃): -40-70
    • Anti-ice capacity (mm): 10
    • Maximum lateral loading (km/h): 160 (working), 200 (maximum)
    • Rain resistance (mm/h): 140
  • Frequency range (MHz): 824-960, 1,710-2,170  2,300-2,500
  • Gain (dBi): >9.5
  • Return loss (dB): >14 (VSWR <1.5)
  • Polarization: Vertical polarization
  • Horizontal beamwidth (°): 50 (3dB), <90 (20dB)
  • Vertical beamwidth (°): 50 (3dB), <90(20dB)
  • Horizontal sidelobe suppression (dB): (deviating from the axially azimuth >|± 45°|）> 20
  • Vertical sidelobe suppression (dB): (Deviating from the axially azimuth >|± 45°|）> 20
  • Electrical downtilt (°): 0-20
  • Front to back ratio (dB):>30
  • Power rating (W): 50
  • Inter-modulation (dBm): -107
  • Impedance (ohm): 50
  • Lightning protection: DC grounded
  • Connector type: 1x 7/16 DIN female
  • Antenna dimensions (mm): 1,359 x 852 x 140
  • Packing size(mm): 1,480 x  960 x 240
  • Antenna weight (kg): 30.5
  • Radome material: Polyester fibreglass pultrusion
  • Pole diameters (mm): 75-110
  • Mounting options:Fixed Fastening clamp
  • Humidity: 95% RH@30℃
  • Temperatures (℃): -40-70
  • Anti-ice capacity (mm): 10
  • Maximum lateral loading (km/h): 160 (working), 200 (maximum)
  • Rain resistance (mm/h): 140
