PoE extender, compatible with IEEE802.3at, with CE, FCC, RoHS

PoE extender, compatible with IEEE802.3at, with CE, FCC, RoHS

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Overview:

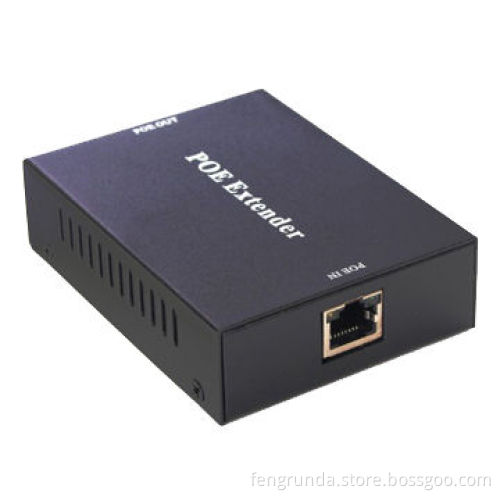

PoE extender with 2 10/100Mbps RJ45 ports, PD port and PSE port
PD port 10/100 base T(X) IEEE802.3 at compliant and maximum power is 25.5W, PSE port 10/100 base T(X) IEEE802.3af compliant and 15.4W maximum power
PoE extender transfer data and supply power by Cat5e/6 UTP cables and maximum distance is 100 meters
PoE injector delivers PoE power over first 100 meters to PS101EX over CAT 5e/6 UTP cable and then PS101EX forwards
Ethernet data and remaining POE power to PoE IP camera
Doesn't requires external power supply and can be installed easily by just plug-and-play, means operator does not need to configure PS101EX
Newly designed and simple device which extends both reach of Ethernet data and power over Ethernet over standard 100m (328ft) CAT 5e/6 UTP cable to 200 and 300m or longer distance

Features:

Complies with IEEE 802.3af power over Ethernet
Compatible power supply pin: 1236 or 4578
Extends range of PoE additional 100 meters
Forwards both Ethernet data and PoE power to remote devices
Automatically detects and protects PoE equipments from being damaged by incorrect installation
Multiple units and daisy chain installation support
No external power cable required for installation
Plug-and-play function

PoE extender with 2 10/100Mbps RJ45 ports, PD port and PSE port

PD port 10/100 base T(X) IEEE802.3 at compliant and maximum power is 25.5W, PSE port 10/100 base T(X) IEEE802.3af compliant and 15.4W maximum power

PoE extender transfer data and supply power by Cat5e/6 UTP cables and maximum distance is 100 meters

PoE injector delivers PoE power over first 100 meters to PS101EX over CAT 5e/6 UTP cable and then PS101EX forwards

Ethernet data and remaining POE power to PoE IP camera

Doesn't requires external power supply and can be installed easily by just plug-and-play, means operator does not need to configure PS101EX

Newly designed and simple device which extends both reach of Ethernet data and power over Ethernet over standard 100m (328ft) CAT 5e/6 UTP cable to 200 and 300m or longer distance

Complies with IEEE 802.3af power over Ethernet

Compatible power supply pin: 1236 or 4578

Extends range of PoE additional 100 meters

Forwards both Ethernet data and PoE power to remote devices

Automatically detects and protects PoE equipments from being damaged by incorrect installation

Multiple units and daisy chain installation support

No external power cable required for installation

Plug-and-play function
