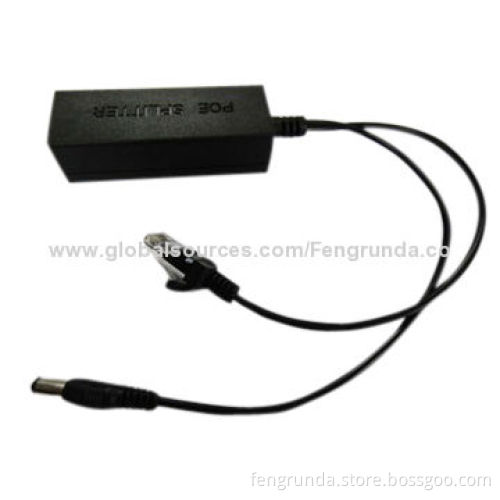

PoE PD splitter for network camera
  • PoE PD splitter for network camera
PoE PD splitter for network camera

PoE PD splitter for network camera

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Descriptions:
    • Supports IEEE 802.3af power over Ethernet standard
    • Supports 10/100Mbps data transmission
    • PD receiving end supports a variety of voltage of 12 to 48V transfer, user-friendly UPS DC power supply
    • Provides 12V voltage to adapt to a variety of small network equipment
    • Circuit isolation protection, effective protection of electrical equipment
    • Guarantees the stability and reliability of the equipment in work
  • Technical specifications:
    • PoE parameters:
      • Maximum power: 15.4W (IEEE 802.3af)
      • Input voltage: 40 to 57V
      • Output voltage: 12V
      • PoE: 1236 pin
  • Connection port:
    • Input: an input RJ45 interface
    • Output: an output RJ45 connector and a DC output interface
    • Data transfer rate: 10/100Mbps
    • Maximum transmission distance: 100m
  • Network standards:
    • IEEE 802.3i 10 BASE-T
    • IEEE 802.3i 100 BASE-TX
    • IEEE 802.3x flow control
    • IEEE 802.3af /IEEE 802.3at
  • LED indicator
  • PoE, DC output
  • Output: 12V
  • Certifications: CE and FCC
  • RoHS Directive-compliant
  • Working temperature: 0 to 50°C
  • Storage temperature: -10 to 70°C
  • Operating humidity: 20 to 85%, non-condensing
  • Size: (L)94*(W)70*(H)26mm
  • Weight: 0.15kg
  • Warranty: one year
  • Supports IEEE 802.3af power over Ethernet standard
  • Supports 10/100Mbps data transmission
  • PD receiving end supports a variety of voltage of 12 to 48V transfer, user-friendly UPS DC power supply
  • Provides 12V voltage to adapt to a variety of small network equipment
  • Circuit isolation protection, effective protection of electrical equipment
  • Guarantees the stability and reliability of the equipment in work
  • PoE parameters:
    • Maximum power: 15.4W (IEEE 802.3af)
    • Input voltage: 40 to 57V
    • Output voltage: 12V
    • PoE: 1236 pin
  • Maximum power: 15.4W (IEEE 802.3af)
  • Input voltage: 40 to 57V
  • Output voltage: 12V
  • PoE: 1236 pin
  • Input: an input RJ45 interface
  • Output: an output RJ45 connector and a DC output interface
  • Data transfer rate: 10/100Mbps
  • Maximum transmission distance: 100m
  • IEEE 802.3i 10 BASE-T
  • IEEE 802.3i 100 BASE-TX
  • IEEE 802.3x flow control
  • IEEE 802.3af /IEEE 802.3at
