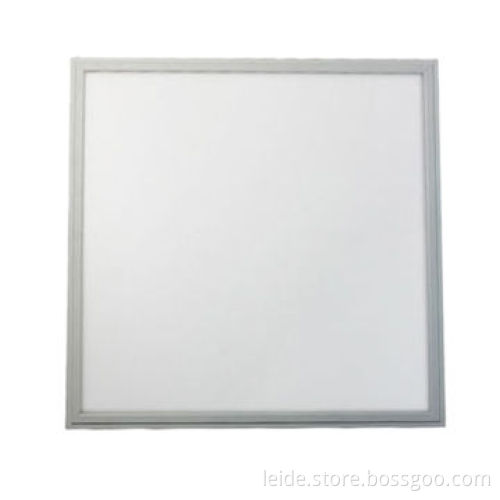

2014 Newest LED Panel Light, ODM Orders are Welcome

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Key specifications/special features:

South Korea's Samsung SMD5630 LEDs, Taiwan lumen maximum SMD5630 or SMD3014 LEDs are available
Meanwell power supply or bipolar drive power supply are available
With high light transmission rate, nice light uniformity, effectively prevent static electricity and dust
Professional aluminum structure design and PCB circuit design to ensure SMD LEDs nice for heat dissipation
Alternative power: 27/36/42/48/54/72 watts
Standards: CE, FCC and LVD
RoHS Directive-compliant
Size: 595*595*7 and 600*600*7mm
Luminous flux: 2100 (27), 2700 (36), 3200 (42), 3600 (48W), 4100 (54) and 5400lm (72W)
Input voltage:
- UL certified: 100-277V AC
- CE certified: 100-240V AC
LED brand chips:
- Option 1: Taiwan Lumen Max SMD3014 LEDs (10*23mil)
- Option 2: Taiwan Lumen Max SMD5630 LEDs (42*25mil)
- Option 3: Korea Samsung SMD5630 LEDs (42*25mil)
LED quantity:
- SMD3014:
  - 27W: 264 pieces
  - 36W: 352 pieces
  - 42W: 418 pieces
  - 48W: 484 pieces
  - 54W: 528 pieces
  - 72W: 704 pieces
- SMD5630:
  - 36W: 110 pieces
  - 42W: 110 pieces
  - 48W: 110 pieces
  - 54W: 120 pieces
  - 72W: 176 pieces
ODM orders are welcome
Dimmable: dimmable or non-dimmable
Color temperature: 2800-6500K
Color rendering index:
- SMD5630: >80Ra
- SMD3014: >72Ra
Net weight: 4.0kg
Gross weight: 4.5kg
Installation method: recessed/suspended/wall mounted/ceiling mounted
Standards: CE, LVD, EMC and FCC
RoHS Directive-compliant
Lifespan: 50,000h
Warranty: 3 years

Primary competitive advantages:

South Korea's Samsung SMD5630 LEDs, Taiwan lumen maximum SMD5630 or SMD3014 LEDs are available

Meanwell power supply or bipolar drive power supply are available

With high light transmission rate, nice light uniformity, effectively prevent static electricity and dust

Professional aluminum structure design and PCB circuit design to ensure SMD LEDs nice for heat dissipation

Alternative power: 27/36/42/48/54/72 watts

Standards: CE, FCC and LVD

RoHS Directive-compliant

Size: 595*595*7 and 600*600*7mm

Luminous flux: 2100 (27), 2700 (36), 3200 (42), 3600 (48W), 4100 (54) and 5400lm (72W)

Input voltage:

LED brand chips:

LED quantity:
