Solar System Connector
  • Solar System Connector
  • Solar System Connector

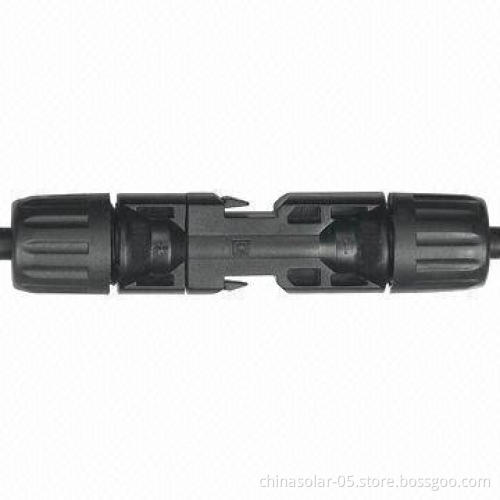

Solar System Connector
Solar System Connector

Solar System Connector

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • MC4 connector
  • Simple on-site processing
  • IP67 protection class guarantees the highest connectionsafety
  • TUV-approved
  • Voltage:
    • Rated: 1,000V DC
    • Test: 6,000V (50Hz, 1min)
  • Rated current: 30A (2.5 to 6mm²)
  • Suitable class: OD 4.5 to 7.2mm² (2.5 to 6.0mm²)
  • Contact resistance of plug connectors: d 0.5m©
  • Insertion force/withdrawal force: d50N
  • Temperature range: -40 to 125°C
  • Connecting system: crimp
  • Protection grade: IP67
  • Flame class: UL94-V0
  • Safety class: II
  • Materials:
    • Contact: copper with tin plating
    • Insulation: PPO
  • Rated: 1,000V DC
  • Test: 6,000V (50Hz, 1min)
  • Contact: copper with tin plating
  • Insulation: PPO
