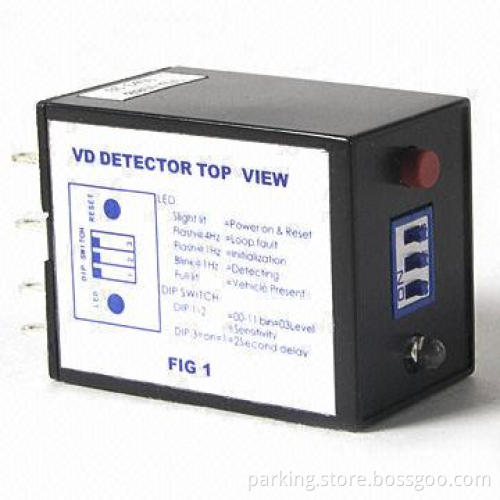

Vehicle Loop Detectors, Small Size, Easy to Install

Vehicle Loop Detectors, Small Size, Easy to Install

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Used for wherever vehicles have to be detected, for example for monitoring and safe-guarding access ways or for counting vehicles

Output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots

Only have one TTL-level output, which is unlimited

Technical data:

Supply voltages: 7 to 12V DC/100mA
Frequency range: 20 to 170kHz
Sensitivity range: 0.02 to 0.2% (4 grades adjustable)
Reaction time: 100ms
Output delay: 2s (optional)
Environment compensation: automatic drift compensation
Loop inductance: ideal 100 to 300μH (includes connecting wiring), 50 to 500μH maximum (includes connecting wiring)
Loop connection wiring: 100m maximum, twisted at least 20 times/meter, total-resistant ≤10Ω
Operating temperatures: -20 to 60°C
Storage temperatures: -40 to 85°C
Relative humidity: ≤95%
