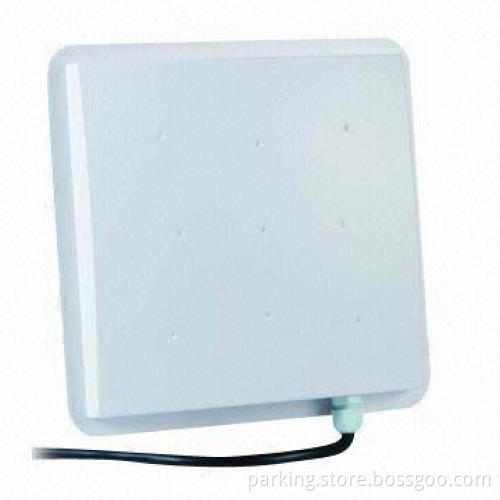

Long Range UHF Card Reader with Operating Frequency Ranging from 902 to 928MHz

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Parameters:

Effective distance: stable distance is 7 to 10m
Maximum distance is more than 30m
Operating frequency: 902 to 928MHz
Product dimension: 460 x 460 x 45mm
Power consumption (maximum): 5W
Supports agreement: ISO-18000-6C (EPC G2) and ISO-18000-6B
Storage temperature: -45 to +95°C
Working temperature: -35 to +65°C
Antenna power: access antenna power 0.5W (adjustable)
Date interface: at the same time with RS232 RS485 Wiegand 26 or 34 date interface, leave the external triggering signal access port in advance
Rapid recognition: can identify fast-moving electronic tags whose speed is greater than 120km/h
Software: provides API development package, and VB VC software

Packing weight: 6.0kg

SDK software:

User operate this reader must be using the SDK software which matching with this readers and can using this function what should be preserved by API

ICR-4100-A series reader and PC-specific RS232 (or RS485) communication protocol (containing the command packet format, returns format, error code agreement and using agreement), SDK software (including composition, data definition, function definition) use, and label the contents of memory allocation, refer to the complete CD-ROM or the electronic package within the relevant content

Effective distance: stable distance is 7 to 10m

Maximum distance is more than 30m

Operating frequency: 902 to 928MHz

Product dimension: 460 x 460 x 45mm

Power consumption (maximum): 5W

Supports agreement: ISO-18000-6C (EPC G2) and ISO-18000-6B

Storage temperature: -45 to +95°C

Working temperature: -35 to +65°C

Antenna power: access antenna power 0.5W (adjustable)

Date interface: at the same time with RS232 RS485 Wiegand 26 or 34 date interface, leave the external triggering signal access port in advance

Rapid recognition: can identify fast-moving electronic tags whose speed is greater than 120km/h

Software: provides API development package, and VB VC software
