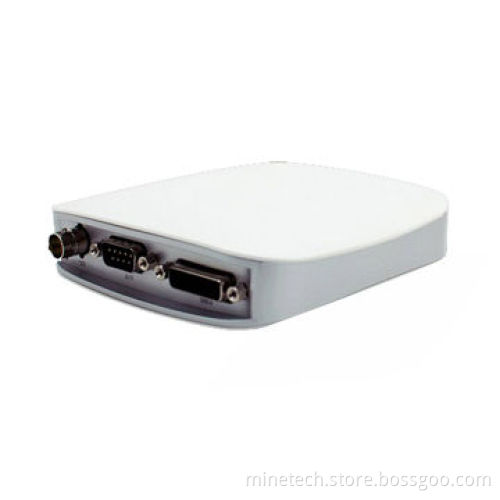

USB HDMI Capture Device with DVI-I Interface Connect to HDMI, VGA, YPbPr

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Connection:

Standard:

DVI input formats: it meets DVI 1.0 standard, single connection(480i, 576i, 480p, 576p, 720p, 1,080i, 1,080p)
HDMI input formats: it meets HDMI 1.3 standard, supports 36bits deep color
SDI input formats: SD/HD/3G-SDI, it meets standards ofSMPTE-259/274/296/372/424/425/292
YPbPr input formats: 480i, 576i, 480p, 576p, 720p, 1,080i,1,080p
VGA input formats: 640x4002,048x1,536 when the pixel is below170MHz, provides safe mode for VGA signals and can captureirregular resolutions
CVBS input standards: PAL/NTSC
HD output format: 40x30-2,048x1536, frame rate: 1-100fps
SD output format: 176x144-768x576, frame rate: 1-30fps
Analog audio sampling rate and SNR: up to 96KHz, 85dB,24-bit
Video sampling rate CVBS: 57.27MHz (4x oversampling)
RGB/component: 170MHz
HDMI/DVI: 225MHz
Video sampling precision: 10 bits
Color space: YUYV, UYVY, I420, NV12, RGB 24 bits, RGB 32bits

Video processing:

Color space switch: hardware color switch
De-interlacing: vertical filter de-interlacing, motion-adaptivede-interlacing
Image scale: hardware 5-tap scale
Image mirror: horizontal, vertical
Image clip: yes
Image adjustment: brightness/contrast/hue adjustment/saturationadjustment/control of monochrome and color
Gamma adjustment: separately adjust the brightness and contrastof R/G/B
Supports following operating systems: Microsoft Windows XPProfessional, Server2003

Host interface: USB3.0, 300-350MB/s transmission bandwidth

Input interface: 1 DVI-I interface (can connect to HDMI, VGA,YPbPr)

1 BNC interface (can connect to SD/HD/3G-SDI)

1 DB9 interface (to YPbPr, S-Video, CVBS,1 unbalanced stereoaudio line-in)

DVI input: 1 1,080P/60Hz HD DVI signal

HDMI input: 1 1,080P/60Hz HDMI signal

SDI input: 1 SD/HD3G-SDI signal, it can reach 1,080P/60Hz

VGA input: 1 VGA

YPbPr input: 1 YPbPr

CVBS input: 1 SD video signal

HDMI input: 1 LPCM audio signal

SDI input: 1 embedded SDI audio
