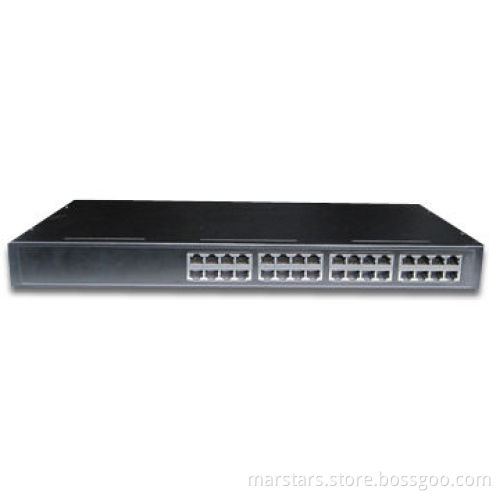

19-inch PoE Midspan Hub with 16-port 10/100Mbps Injectors

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Efficient solution to interchange existing non-PoE

With 16-port, 10/100Mbps injectors and output up to 16ports

Supports maximum PoE of 15.4W for each port

Specifications:

Performance:

LED indicators:

Operating environment:

Standard:

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-T Fast Ethernet

IEEE 802.3 NWay auto-Negotiation

IEEE 802.3af power over Ethernet

8P8C RJ-45 x 8 supports shielded (STP) and unshielded (UTP)cat5, 5E and 6

Power is delivered to twist-pair pin 1, 2 and pin 3 and 6

10/100Mbps: x 16

PoE power: X 16

802.3af 15.4W per port and 190.0W maximum

PoE ports output voltage range: 44 to 57V DC

Mac address table: 4K

Packet buffer memory: 512KB buffer

Power adapter: 110 to 220V AC, 48V DC and 4.2A

PoE power: up to 15.4W maximum/port for all ports 1 to 16

Total PoE power: 190W maximum

Power on indicator x 1

Link/active: x 16

PoE power: x 16

Operating temperature: 0 to 40°C

Storage temperature: -10 to 70°C

Relative humidity: 10 to 90%

Supply power to power over Ethernet devices

VoIP phone

Wireless access points
