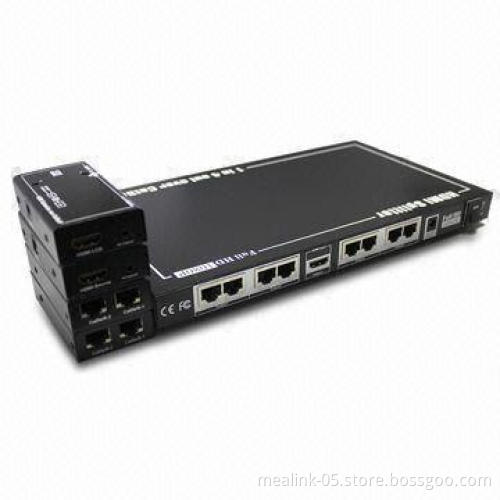

1 x 4 HDMI Extender Over Cat5e/6, Supports IR Extension, 3D and 1,080p Video Resolution

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

With four RJ45 outputs

Supports 3D TV and 3D source, IR signal extension andreturn

Distributes input of the HDMI signal into the four identicaloutputs simultaneously

Four HDMI extender receivers by CAT6 x2 receive the distributedsignal from the splitter and transmit to displays individually

Each receiver works with the splitter as a full functionalmodule

Only by the most inexpensive CAT-6 cable the full functionalmodule extend the HDTV display up to 60 meters for 1,080pixels

Offers solutions for HDTV retail and show site, HDTV, STB, DVDand Projector factory, noise, space and security concerns, datacenter control, information distribution, conference roompresentation, school and corporate training environments

Features:

Enables to perform in a superior manner
Easy to use: install in seconds, no need of setting
One pair as a full functional module
One piece of CAT-6e cable can substitute HDMI cable to achievelong distance transmission
With IEEE-568B mark
Transmission distance can be up to 60 meters for 1080p usingfull copper CAT-6/6e cable
Supports HDMI 1.3, HDCP1.2
Supports one CAT6 or double CAT6 cable between each Tx and Rx(two modes)
Supports IR extension
Supports 3D TV, 3D HD-DVD player
Supports highest video resolution 1,080 pixels
Supports 165MHz/1.65Gbps per channel (4.95Gbps all channel)bandwidth
Supports 24-bit deep color
Supports uncompressed audio such as LPCM

Specifications:

Signal input/output
Input DDC signal: 5V p-p (TTL)
Maximum single link range: 1,920 x 1,080 pixels
Output video: HDMI 1.3
Video amplifier bandwidth: 1.65Gpbs/165MHz
Vertical frequency range: 50 to 60Hz
Resolutions (HDTV):
- Interlaced (50 and 60Hz): 480, 576, 1080i
- Progressive(50 and 60Hz): 480, 576, 720, 1,080 pixels
HDMI, the HDMI logo and High-Definition MultimediaInterface are trademarks or registered trademarks of HDMI LicensingLLC.
