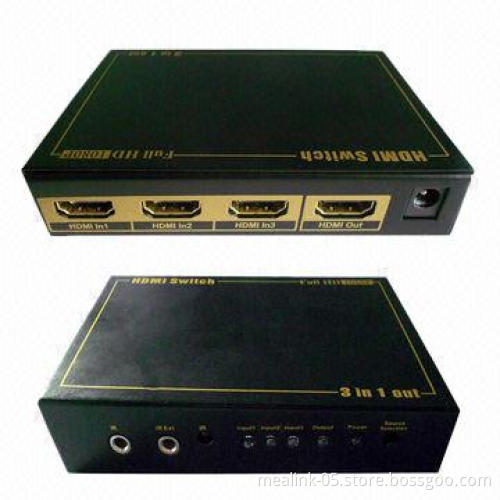

3 x 1 HDMI® Switches with IR, Support 10.2Gbps Bandwidth
  • 3 x 1 HDMI® Switches with IR, Support 10.2Gbps Bandwidth
  • 3 x 1 HDMI® Switches with IR, Support 10.2Gbps Bandwidth
3 x 1 HDMI® Switches with IR, Support 10.2Gbps Bandwidth
3 x 1 HDMI® Switches with IR, Support 10.2Gbps Bandwidth

3 x 1 HDMI® Switches with IR, Support 10.2Gbps Bandwidth

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Basic functions:
    • Support IR control system, IR transport channel can be forwardor backward
    • 3 different HDMI® input and 1 HDMI® display sink
    • Support 10.2Gbps bandwidth
    • 3D support
  • Specifications:
    • HDMI® version with 3D
    • HDCP version 1.2
    • Support HDMI® resolution:1,080P/1,080i/720P/576P/576i/480P/480i
    • Support video color bit deep color 24/36 bits
    • Support audio format LPCM/Dolby-AC3/DTS7.1/DSD
    • Input video signal: 5.0Vp-p
    • Output cable distance: d15m, 24AWG cable
    • Input Cable distance: d20m, 24AWG cable
    • Data transfer speed: 10.2Gbps
    • Operating humidity range: 5 to 90% RH (non-condensation)
    • Operating temperature range: -15 to +55 (5 to 131°F)
    • Power adapter format input: 50, 60Hz, 100-240V AC
  • Package included:
    • When first unpacking your HDMI® switch please check to seeif the following items are included
    • One HDMI® switch
    • Power supply
    • User manual
    • The remote control
  • Operating:
    • Connect the signal source (such as HD-DVD, PS3, STB) withHDMI® input interfaces
    • Connect the display devices (such as HD-LCD, HD-DLP) withHDMI® output interfaces
    • This device is powered by an external power supply(included)
  • Support IR control system, IR transport channel can be forwardor backward
  • 3 different HDMI® input and 1 HDMI® display sink
  • Support 10.2Gbps bandwidth
  • 3D support
  • HDMI® version with 3D
  • HDCP version 1.2
  • Support HDMI® resolution:1,080P/1,080i/720P/576P/576i/480P/480i
  • Support video color bit deep color 24/36 bits
  • Support audio format LPCM/Dolby-AC3/DTS7.1/DSD
  • Input video signal: 5.0Vp-p
  • Output cable distance: d15m, 24AWG cable
  • Input Cable distance: d20m, 24AWG cable
  • Data transfer speed: 10.2Gbps
  • Operating humidity range: 5 to 90% RH (non-condensation)
  • Operating temperature range: -15 to +55 (5 to 131°F)
  • Power adapter format input: 50, 60Hz, 100-240V AC
  • When first unpacking your HDMI® switch please check to seeif the following items are included
  • One HDMI® switch
  • Power supply
  • User manual
  • The remote control
  • Connect the signal source (such as HD-DVD, PS3, STB) withHDMI® input interfaces
  • Connect the display devices (such as HD-LCD, HD-DLP) withHDMI® output interfaces
  • This device is powered by an external power supply(included)
