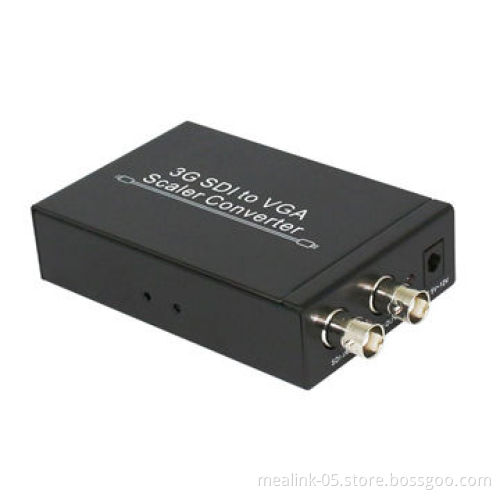

3G SDI to VGA scaler converter, allows SD-SDI, HD-SDI & 3G-SDI signals to be shown on VGA displays

3G SDI to VGA scaler converter, allows SD-SDI, HD-SDI & 3G-SDI signals to be shown on VGA displays

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Introduction:

SDI to VGA scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on VGA displays
while ensuring high bit rates of 2.970Gbit/s to give you fast signal transmission without any loss
For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on VGA displays thanks to the built in this converter
Loop through 3G-SDI design, users are able to enjoy both SDI and VGA at the same time

Features:

Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
Equalized and re-clocked loop output
Auto video mode detection (3G/HD/SD)
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
Connect with other units to extend your signal over long distances
Simultaneous display with SDI /VGA signals
Alternative audio output to analog 2CH
Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and 100M for 3G signals
Note: Cable tested with Belden 1694A, operating distances may vary if used with another type of cable

Package:

3G SDI to VGA scaler converter*pc
5V DC power supply adapter*1pc
Operation manual*1pc

Specifications:

SMPTE standard: 425M Level A & B, 424M, 292M, 259M-C
SDI transmission rates: 2.970Gbit/s and 2.970/1.001Gbit/s
SDI in/out resolution SD: 480i@60, 576i@50 HD, 720p@50/60, 1080i@50/60 3G, 1080p@24/25/29.97/30/50/59.94/60
VGA output resolution: 800x600@60Hz, 1024x768@60Hz,1280x720@60Hz,
1440x900@60Hz, 1280x1024@60Hz, 1680x1050@60Hz,
1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz
Input port: 1 x BNC (SD/HD/3G-SDI)
Output port: 1 x BNC (SD/HD/3G-SDI), 1 x VGA, 1 x earphone (L/R)
Power supply: DC 5V -12V
ESD protection human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge)
Dimension: 95mm x 60mm x 25 mm
