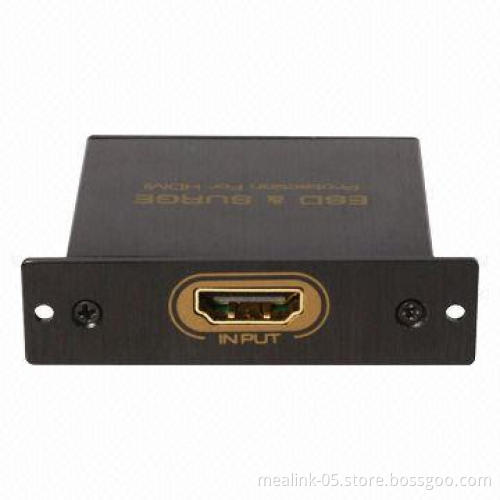

HDMI Surge Protector, Support 3D

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Specifications:

HDMI version: HDMI 1.4 with 3D, 4Kx2K, HEAC

HDMI resolution:24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format: 24bit/deep color 30bit, 36bit,48bit

Support audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)

Max bandwidth: 340MHz

Max baud rate: 10.2Gbps

Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal: 5Volts p-p (TTL)

Max working current: 50mA

Operating Temperature range: (-15 to +55)

Operating Humidity range: 5 to 90%RH (No Condensation)

Dimension (L x W x H): 43.5x64x16.5 (mm)

Weight: 40g

Protect HDMI input and output for ESD and Lightning Surge

Meet IEC 61000-4-2 (ESD) ±15kV (air), ±8kV(contact)

Meet IEC 61000-4-4 (EFT) 40A (5/50ns)

Meet IEC 61000-4-5 (Lightning) 5A (8/20µs)

Support HDMI 1.4 with 3D,4KX2K and HEAC

Solid-state silicon-avalanche technology

Support HDCP

No loss of quality

Installs in minutes

No need power adaptor
