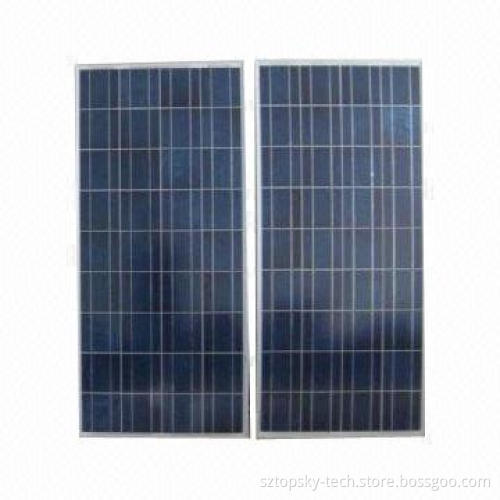

TP-(135W-145W)PSP polycrystalline solar panels
  • TP-(135W-145W)PSP polycrystalline solar panels
  • TP-(135W-145W)PSP polycrystalline solar panels
TP-(135W-145W)PSP polycrystalline solar panels
TP-(135W-145W)PSP polycrystalline solar panels

TP-(135W-145W)PSP polycrystalline solar panels

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Typical electrical characteristics:
    • Solar cells: polycrystalline silicon 156mmx156mm 36pcs (4x9)-3bus bars
    • Max-power: 135Wp, 140Wp, 145Wp
    • Power tolerance: -1% to +3%
    • Voltage at Pmax(Vmp): 18.0V, 18.1V, 18.2V
    • Open-circuit voltage(Voc): 22.0V, 22.2V, 22.4V
    • Current at Pmax(Imp): 7.50A, 7.73A, 7.95A
    • Short-circuit current(Isc): 8.12A, 8.30A, 8.46A
    • Max-system voltage: 1000V(IEC), 600V DC (UL)
    • Cell efficiency: 15.60%, 16.20%, 16.80%
    • Module efficiency: 13.50%, 14.00%, 14.50%
    • Number of bypass diodes: 3pcs
    • Max series fuse: 12A
    • Temperature coefficient of Pmax: -0.48%/℃
    • Temperature coefficient Voc: -0.34%/℃
    • Temperature coefficient of Isc: 0.02%/℃
    • Nominal operating cell temperature: 47±2℃
  • Mechanical characteristics:
    • Cable type, diameter and length: Φ=4mm², L=1000±5mm
    • Type of connector: compatible type Mc4
    • Dimensions (AxBxC): 1482x674x45mm(58.35x26.54x1.77-inch)
    • Weight: 13.0kg(28.6lbs)
    • Construction:
      • Glass: high transmission low iron, tempered
      • Glass: 3.2mm
      • Encapsulation: EVA
      • Back side: Tedlar, white
      • Junction box: IP65 rated
      • Frame: clear anodized aluminum alloy type6063T5 frame
  • Qualification test parameters:
    • Dielectric insulation voltage: 3000V DC max
    • Operating temperature: -40℃ to + 85℃
    • Max load: 5400pa
    • Hailstone impact: 25mm(1inch) at 23m/s(52mph)
  • Packaging configuration: 22pcs/box
  • Quantity pallet: 1 box/pallet
  • Loading capacity: 616pcs/40'GP, 308pcs/20'GP
  • Solar cells: polycrystalline silicon 156mmx156mm 36pcs (4x9)-3bus bars
  • Max-power: 135Wp, 140Wp, 145Wp
  • Power tolerance: -1% to +3%
  • Voltage at Pmax(Vmp): 18.0V, 18.1V, 18.2V
  • Open-circuit voltage(Voc): 22.0V, 22.2V, 22.4V
  • Current at Pmax(Imp): 7.50A, 7.73A, 7.95A
  • Short-circuit current(Isc): 8.12A, 8.30A, 8.46A
  • Max-system voltage: 1000V(IEC), 600V DC (UL)
  • Cell efficiency: 15.60%, 16.20%, 16.80%
  • Module efficiency: 13.50%, 14.00%, 14.50%
  • Number of bypass diodes: 3pcs
  • Max series fuse: 12A
  • Temperature coefficient of Pmax: -0.48%/℃
  • Temperature coefficient Voc: -0.34%/℃
  • Temperature coefficient of Isc: 0.02%/℃
  • Nominal operating cell temperature: 47±2℃
  • Cable type, diameter and length: Φ=4mm², L=1000±5mm
  • Type of connector: compatible type Mc4
  • Dimensions (AxBxC): 1482x674x45mm(58.35x26.54x1.77-inch)
  • Weight: 13.0kg(28.6lbs)
  • Construction:
    • Glass: high transmission low iron, tempered
    • Glass: 3.2mm
    • Encapsulation: EVA
    • Back side: Tedlar, white
    • Junction box: IP65 rated
    • Frame: clear anodized aluminum alloy type6063T5 frame
  • Glass: high transmission low iron, tempered
  • Glass: 3.2mm
  • Encapsulation: EVA
  • Back side: Tedlar, white
  • Junction box: IP65 rated
  • Frame: clear anodized aluminum alloy type6063T5 frame
  • Dielectric insulation voltage: 3000V DC max
  • Operating temperature: -40℃ to + 85℃
  • Max load: 5400pa
  • Hailstone impact: 25mm(1inch) at 23m/s(52mph)
