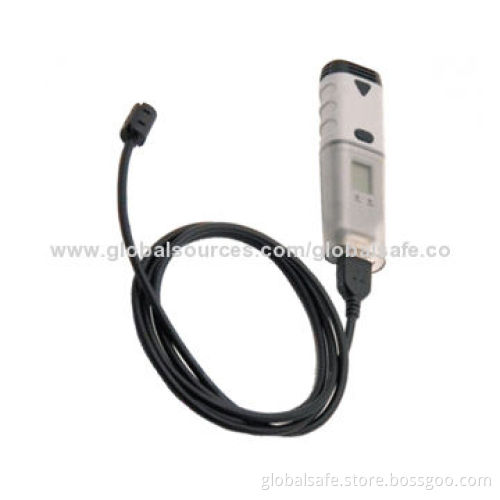

Portable handle-held USB meter for temperature measuring

Portable handle-held USB meter for temperature measuring

Get Latest Price

Payment Type:: T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Descriptions:

Portable, precise, compact and low cost
USB interface directly communicate with PC for setup and data download
Unique and uniform PC control software
Each unit has single serial number
User can set access password for each data logger
Alarm and status indication via LED
Start logging method: immediately, button, start at
Replaceable Lithium battery and data is not lost if exhausted
Two point calibration for each channel
Alarm limit settings for all channels
User can customize compound graph
User can customize new unit easily
User can name each channel and enable/disable it

Technical parameters:

Temperature range: -40 to 125°C (-40 to 257°F)
Temperature accuracy: ±0.5°C (±0.9°F)
Sensor detecting location: external
Display: LCD display
Probe: external probe 2m length
Memory capacity: 64KBytes (total 32,000 readings)
Sample rate: user selectable from once every 2 seconds to once every 12 hours
PC software: DGraph software and USB driver required (included in CD)
Power supply: user replaceable 1/2AA 3.6V Lithium battery, 1,200mAh
Battery lifespan: approximate 3 years at 1-minute sample rate
Dimensions: 120mm x 37mm x 23mm (4.8 x 1.5 x 0.9")
Battery lithium: 1/2 AA 3.6V lithium battery

Benefits:

Extended temperature range and external probe
High reliability and stability for industrial-grade application
Multiple data loggers can be graphed together
Easy to use

Applications:

"Handleheld USB meter" mainly to monitor and verify temperature-sensitive goods, equipment or areas, example:
- Cold chain
- Refrigeration
- Transportation
- Warehouse
- HVAC
- Food & pharmaceutical

Accessories: Screws & mounting bracket

Order information:

Standard kit includes: data logger, probe, CD
With USB driver and software, quick
Start guide, 1/2 AA 3.6V Lithium battery

Portable, precise, compact and low cost

USB interface directly communicate with PC for setup and data download

Unique and uniform PC control software

Each unit has single serial number

User can set access password for each data logger

Alarm and status indication via LED

Start logging method: immediately, button, start at

Replaceable Lithium battery and data is not lost if exhausted

Two point calibration for each channel

Alarm limit settings for all channels

User can customize compound graph

User can customize new unit easily

User can name each channel and enable/disable it

Temperature range: -40 to 125°C (-40 to 257°F)

Temperature accuracy: ±0.5°C (±0.9°F)

Sensor detecting location: external

Display: LCD display

Probe: external probe 2m length

Memory capacity: 64KBytes (total 32,000 readings)

Sample rate: user selectable from once every 2 seconds to once every 12 hours

PC software: DGraph software and USB driver required (included in CD)

Power supply: user replaceable 1/2AA 3.6V Lithium battery, 1,200mAh

Battery lifespan: approximate 3 years at 1-minute sample rate

Dimensions: 120mm x 37mm x 23mm (4.8 x 1.5 x 0.9")

Battery lithium: 1/2 AA 3.6V lithium battery

Extended temperature range and external probe

High reliability and stability for industrial-grade application

Multiple data loggers can be graphed together

Easy to use

"Handleheld USB meter" mainly to monitor and verify temperature-sensitive goods, equipment or areas, example:

Cold chain
Refrigeration
Transportation
Warehouse
HVAC
Food & pharmaceutical

Cold chain

Refrigeration

Transportation

Warehouse

HVAC

Food & pharmaceutical

Standard kit includes: data logger, probe, CD

With USB driver and software, quick

Start guide, 1/2 AA 3.6V Lithium battery
