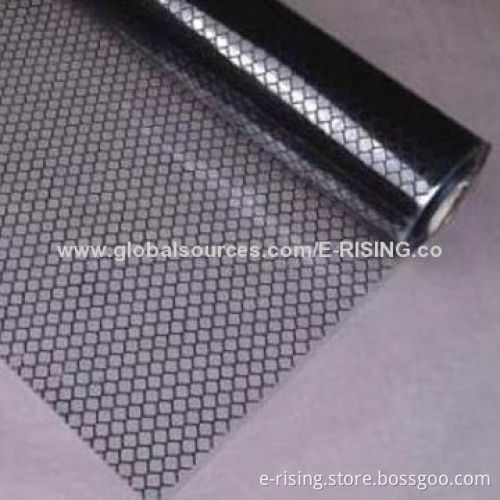

Black ESD Grid Curtain, 1.37m Wide

Get Latest Price

Payment Type:: T/T, L/C or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or PayPal

Product Description

ESD curtain:

Apply to electronics, foodstuffs, pharmaceuticals, refrigeration and other industries, the electronics industry is particularly applicable to the purification plant, and so on.
Purification, anti-static, at the temperature, noise, vehicle-free passage
Soft, transparent, flame retardant and difficult to aging

Description:

Wipe with a dry cloth, wipe or not soaking wet, but also prohibited from using cleaning agents, such as alcohol.
Positive resistance: 10E5-10E9Ω
Back resistance: 10E8-10E10Ω
Two years conductive fabric or vinyl for upholstered components

Specifications:

Anti-static PVC gird
Surface
Back
Standards
Surface resistivity:
- 10E6-10E7Ω/sq.m
- 10E11-10E12Ω/sq.m
- ASTM-257
Electrostatic voltage: <50V, <100V
Electro static field meters:
- Flame retardant: pass JIS A-1322
- Tensile strength length/MDL: 1.8kg/mm²
- ASTM D-822 width/TD: 1.8kg/mm²
- 100% modulus length/MD: 1.1kg/mm²
- ASTM D-822 width/TD: 1.8kg/mm²
- Elongation length/MD: 170%
- ASTM D-822 width/TD: 210%

Sizes:

Thickness: 0.3/0.5/1.0/2.0mm
Width: 1.37m
Length per roll: 30m

Apply to electronics, foodstuffs, pharmaceuticals, refrigeration and other industries, the electronics industry is particularly applicable to the purification plant, and so on.

Purification, anti-static, at the temperature, noise, vehicle-free passage

Soft, transparent, flame retardant and difficult to aging

Wipe with a dry cloth, wipe or not soaking wet, but also prohibited from using cleaning agents, such as alcohol.

Positive resistance: 10E5-10E9Ω

Back resistance: 10E8-10E10Ω

Two years conductive fabric or vinyl for upholstered components

Anti-static PVC gird

Surface

Back

Standards

Surface resistivity:
