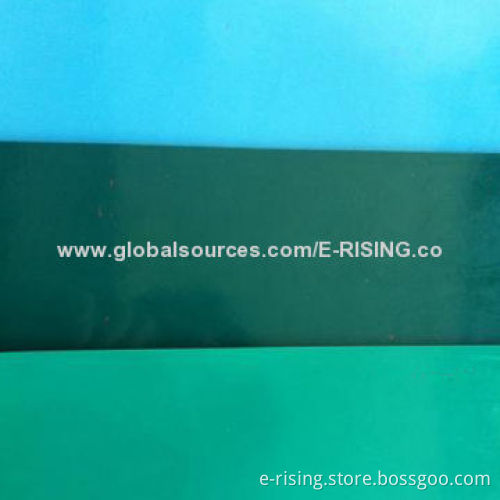

Anti-static table mat, made of rubber

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or PayPal

Product Description

Provides excellent electrical and durability

Exceeds both EOS/ESD and department of defense requirement

Dual layer design

Hot solder-resistant

Conductive bottom layer

Chemical- and abrasion-resistant

Specifications:

Materials: rubber, butyl, super conductive carbon, anti-static reagent and zinc oxide
ESD reading:
- Top layer: <10E8Ω
- Conductive back layer: <10E6Ω
- RTT (resistance top to top): 5.8x10E7-6x10E8Ω
- Resistance to ground: 5.2x107-5x10E8Ω
Charge decay time: 5000V to 50V, <0.01s
Standards:
- ANSI EOS/ESD S4.1 RTG
- ANSI EOS/ESD S4.1 RTG
- Fed Std 101 method 4046
Colors: green, black, blue and gray
Width: 0.6, 0.9, 1 and 1.2m
Thickness: 2mm
Weight: 3kg/m²
