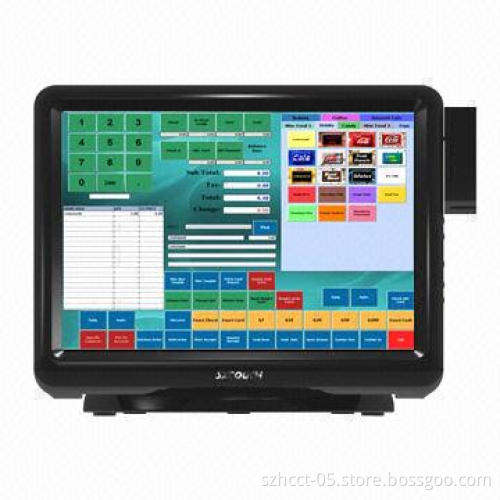

Touching POS Terminal--- HPOS15A

Specification

Main board: CPU

Intel® Pine view D425 (Dual Core) 1.80GHz with L2 Cache 512KB

Chipset: Intel® Pineview + ICH8M

System memory: 1 x SO-DIMM DDRIII 2G , up to 4GB

Display: TFT LED, 38.1cm (15")

Brightness: 350nits

Resolution: 1024 x 768

Touch screen: true flat 5-Wire Resistive

Storage: HDD Type: 1 x SATA 6.4cm (2.5'')HDD

SSD type: 1 x SATA 6.4cm (2.5”) SSD (optional)

DC Input: 1 x Mini Din 2P (DC 12V only)

I/O Ports: external

Network: (LAN): 1 x Gigabit Ethernet by RJ-45

USB port: 4 x USB 2.0

Serial port: 2 x RS-232 w/ IR/5V/12V power

Audio: 1 x Line-out ; 1 x Mic-In (optional)

PS/2 port: 2 x PS/2 connector for Keyboard

LPT port: 1 x DB-25 Printer Port (Standard)

VGA port: 1 x DB-15 VGA Port (optional)

Power supply: external adapter, DC Model:80 Watts, Voltage:+12VDC 5.0A max.

Color: main unit: gray /white/black

Customized color for plastic parts

VESA mounting

100 x 100mm

Operating temperature: 0 to 40 deg. C, 10% ~ 90% RH, non-condensing

Storage temperature: -20 to 60 deg. C, 10% ~ 90% RH, non-condensing

Certifications: CCC，CE, FCC, RoHS

OS support: Windows 7, Windows POSReady, Windows XP Pro for Embedded, Win CE，Fedora(Linux)

Dimension( Wx H x D ): 370 x 300 x 236 mm

Weight: 6.5kg (aluminum base: 1kg )
