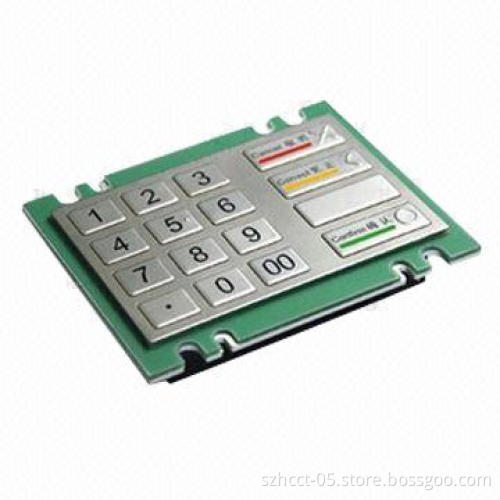

HE-6020 Encryption Pin Pad, PCI2.0 EPP

Get Latest Price

Payment Type:: T/T, L/C, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

Overview: for financial equipment such as ATM, CDM, CRS,recharge and bill payment devices, as well as self-serviceapplication such as info-kiosks, vending machines, lotterymachines, gas stations

Features:

Waterproof, dust-proof, drill-proof, pry-proof, audiomonitoring prevention

Tamper detection leads to erasure of data (keys and sensitiveinformation)

Proprietary key management system

Wide voltage range

Remote key loading (RKL)

Remote firmware update (RFU)

Specification:

Algorithms:

Pin block standards: IBM3624, ANSIX9.8, ISO9564-0/1/3, DIEBOLD,DIEBOLDCO, ECI2, ECI3, Visa, Visa3, IBM-offset, Visa-Offset

Mac standards: ANSI X9.9, ANSI X9.19, ISO13491

Supports DES, Triple DES, RSA, SHA-1, SHA-256

Supports XFS 2.0/3.03/3.10

Approval: PCI 2.x security, CE

ESD level 4 (air discharge: ±15kV, contact discharge of±8kV)

Keys 12 numeric keys and 4 function keys

8 function keys expandable

Key lifetime: 2,000,000 cycles per key

Force on keystroke: 2N-3.5N

Force on function keys: 3N~6N

Keys travel: 0.4mm

Data storage life: 5 years

External power supply voltage: 10-35V

USB voltage: 4.75-5.25V

Environmental:

Protection: IP65 (front panel)

Operating temperature range: -25-+65°C

Storage temperature range: -35-+75°C

Operating humidity: d95% RH (non-condensing)

Interface:

RS232: W03AAC--RJ45, W03BAC-DB9-M

USB: type B socket
