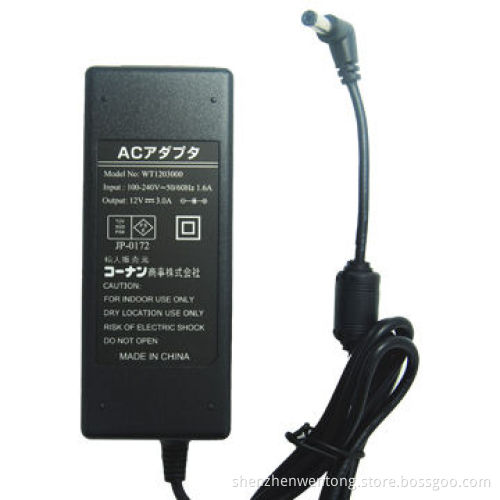

36W 12V 3A AC/DC power supply with PSE JP-0172, OEM

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Configuration: IEC320 to C6, IEC320 to C8, IEC320 to C14

Dimensions: 114 x 50 x 30mm

DC jack: 5.5 x 2.5 x 11mm/5.5 x 2.1 x 10mm

Warranty: 1 year

Applications:

Specifications:

Input voltages: 100 to 240V AC, 50/60Hz
Output: 12V/3A
Voltage tolerance: ±5%, ripple and noise (mVp-p) less than 1%, turn on delay time less than 3s, hold up time for more than 10ms
Over-voltage protection: 120% (minimum)
Over-current protection: 120% (minimum)
Short-circuit protection: automatic recovery
Loading regulation: ±5%
Operating temperatures: 0 to 40°C
Storage temperatures: -20 to 85°C
Operating relative humidity range: 5 to 95% RH
Insulation: hipot 3,000V AC, 60s, 10mA
Leakage current :0.25mA (maximum)
MTBF: more than 50,000 hours
With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC and ERP and C-Tick marks
