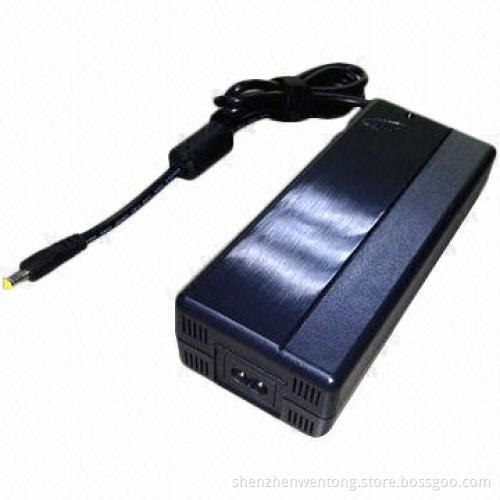

24V/6A Power Adapter with PFC

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Input: 100 to 240V AC, 50/60Hz

Power: 120 to 150W

Output: 24V/6A

Voltage tolerance: ±5%, ripple and noise (mVp-p) lessthan 1%, turn on delay time less than 3s, hold up time more than10ms

Protection: short circuit, over current, over voltage

Operating temperature: 0 to 40°C

Humidity: 10 to 90% RH

Storage temperature: -20 to 85°C

Humidity: 10 to 90% RH,

Altitude: 3,000m

EMC: EN55022B, FCC, GB9254, VCCI

Insulation: hi-pot

3,000V AC, 60S, 10mA

Leakage current: 0.25mA (maximum)

MTBF: more than 50,000 hours

Configuration: IEC320-C6, IEC320-C8

With PFC
