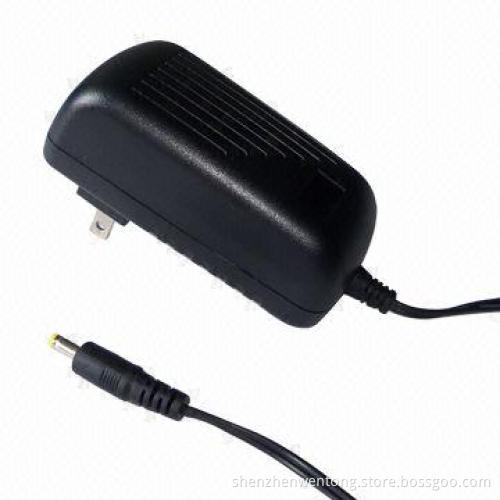

24W AC/DC Adapter with UL Plug, 100 to 240V AC Input Voltage and 0.25mA Maximum Leakage Current

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Power: 24W

Input voltage: 100 to 240V AC at 50/60Hz

Output: 12V/2A

Voltage tolerance: ±5%

Ripple and noise: less than 1% (mvp-p)

Turn on delay: time less than 3 seconds

Hold up time: more than 10 minutes

Over-voltage protection: 120% (minimum)

Over-current protection: 120% (minimum)

Short-circuit protection: automatic recovery

Loading regulation: ±5%

Operating temperature: 0 to 40 degrees Celsius

Storage temperature: -20 to 85 degrees Celsius

Operating relative humidity range: 5 to 95% RH

Insulation: hi-pot, 3,000V AC, 60 seconds, 10mA

Leakage current: 0.25mA (maximum)

MTBF: more than 50,000 hours

Safety standards: UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ERP and C-tick marks

DC jack: 5.5 x 2.1 x 11mm

Dimensions: 74 x 40 x 30mm
