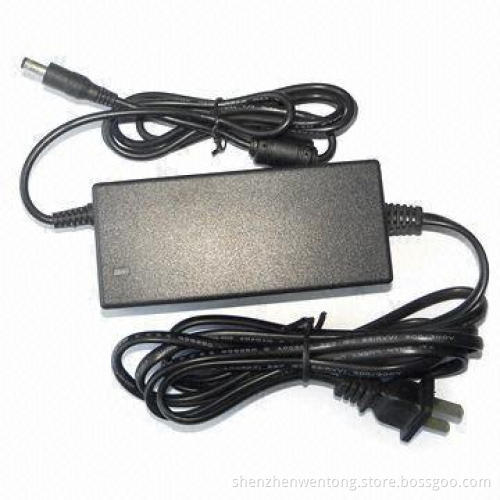

AC/DC Switching Power Adapter, 100 to 240V AC Input Voltage, Dimensions 114 x 50 x 30mm
  • AC/DC Switching Power Adapter, 100 to 240V AC Input Voltage, Dimensions 114 x 50 x 30mm
  • AC/DC Switching Power Adapter, 100 to 240V AC Input Voltage, Dimensions 114 x 50 x 30mm
AC/DC Switching Power Adapter, 100 to 240V AC Input Voltage, Dimensions 114 x 50 x 30mm
AC/DC Switching Power Adapter, 100 to 240V AC Input Voltage, Dimensions 114 x 50 x 30mm

AC/DC Switching Power Adapter, 100 to 240V AC Input Voltage, Dimensions 114 x 50 x 30mm

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Input voltage: 100 to 240V AC at 50/60Hz
    • Output voltage tolerance: ± 5%, ripple and noise (mVp-p)less than 1%, turn on delay time more than 3S, hold up time morethan 10mS
    • Protection: short circuit protection, over current protection,over voltage protection
    • Operating temperature: 0 to 40°C, 10 to 90% RH
    • Storage temperature: -20 to 85°C, 10 to 90% RH, altitudeless than 3,000m
    • EMC: EN55022B, FCC, GB9254, VCCI
    • Safety accord: UL/CUL, TUV/GS, CCC, SAA
    • Insulation: HI-POT 3,000Vac 60S 10mA
    • Leakage current: 0.25mA (maximum)
    • MTBF: more than 50,000 hours
    • Configuration: IEC320 to C6, IEC320 to C8
    • Dimension: 114 x 50 x 30mm
    • Desktop type: 5.5 x 2.5 x 11mm
  • Input voltage: 100 to 240V AC at 50/60Hz
  • Output voltage tolerance: ± 5%, ripple and noise (mVp-p)less than 1%, turn on delay time more than 3S, hold up time morethan 10mS
  • Protection: short circuit protection, over current protection,over voltage protection
  • Operating temperature: 0 to 40°C, 10 to 90% RH
  • Storage temperature: -20 to 85°C, 10 to 90% RH, altitudeless than 3,000m
  • EMC: EN55022B, FCC, GB9254, VCCI
  • Safety accord: UL/CUL, TUV/GS, CCC, SAA
  • Insulation: HI-POT 3,000Vac 60S 10mA
  • Leakage current: 0.25mA (maximum)
  • MTBF: more than 50,000 hours
  • Configuration: IEC320 to C6, IEC320 to C8
  • Dimension: 114 x 50 x 30mm
  • Desktop type: 5.5 x 2.5 x 11mm
