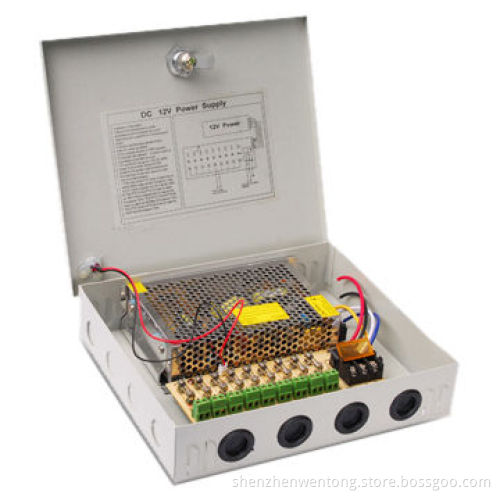

120W Series Multi-channel Dedicated CCTV Power Supply with 90 to 132V AC Input Voltage

120W Series Multi-channel Dedicated CCTV Power Supply with 90 to 132V AC Input Voltage

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Output power: 120W (maximum)
Input voltage: 90 to 132/180 to 240V AC (optional by switch)
Frequency: 50 to 60Hz
Current: 2.5, 1.6A (maximum)
In-rush current: 25, 35A
Leakage current: <3.5mA/240V AC
Output voltage: 5, 12, 24V DC
Voltage accuracy: ±3, 2.5, 1.25%
Line regulation: ±0.5%
Load regulation: ±1%
Minimum load: 0%
Typical efficiency: 78, 81, 87%
Adjustable extent of output voltage: 4.5 to 6.5, 9 to 15, 22 to 27V DC
Ripple and noise: 200, 150mV
Hold-up time: 20 milliseconds (minimum)
Switching frequency: 60kHz

Protections:

Overload: 105 to 150% rated output power
Protection type: automatic recovery
Short-circuit: automatic recovery
Electric strength
Isolation resistance

Environment:

Operating temperature: -10 to 50°C
Storage temperature: -25 to 85°C
Temperature co-efficient: ±0.03%°C (0 to <50°C)
Humidity: 95% RH

Cooling method: natural air-cooled

Safe and EMC:

Safety standards: UL60950
EN60950EMI: EN55011 class
BEN55022 class
BEMS immunity: EN55024, EN61000-6-2
Harmonic current: EN61000-3-2

Output power: 120W (maximum)

Input voltage: 90 to 132/180 to 240V AC (optional by switch)

Frequency: 50 to 60Hz

Current: 2.5, 1.6A (maximum)

In-rush current: 25, 35A

Leakage current: <3.5mA/240V AC

Output voltage: 5, 12, 24V DC

Voltage accuracy: ±3, 2.5, 1.25%

Line regulation: ±0.5%

Load regulation: ±1%

Minimum load: 0%

Typical efficiency: 78, 81, 87%

Adjustable extent of output voltage: 4.5 to 6.5, 9 to 15, 22 to 27V DC

Ripple and noise: 200, 150mV

Hold-up time: 20 milliseconds (minimum)

Switching frequency: 60kHz

Overload: 105 to 150% rated output power

Protection type: automatic recovery

Short-circuit: automatic recovery

Electric strength

Isolation resistance

Operating temperature: -10 to 50°C

Storage temperature: -25 to 85°C

Temperature co-efficient: ±0.03%°C (0 to <50°C)

Humidity: 95% RH

Safety standards: UL60950

EN60950EMI: EN55011 class

BEN55022 class

BEMS immunity: EN55024, EN61000-6-2

Harmonic current: EN61000-3-2
