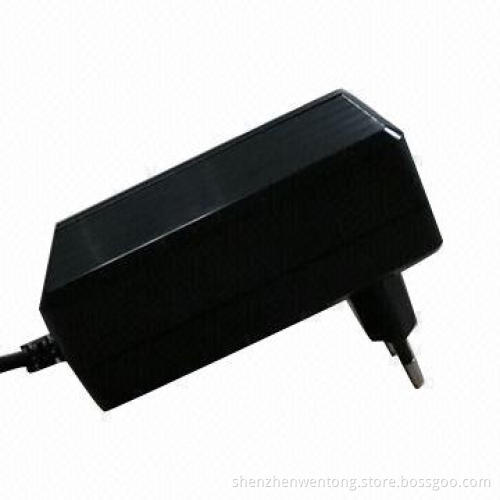

12V 3A Wallmount Power Supply, Meet SAA, UL, GS, PSE, RoHS, Pass EMC, EMI, Mini Size
  • 12V 3A Wallmount Power Supply, Meet SAA, UL, GS, PSE, RoHS, Pass EMC, EMI, Mini Size
  • 12V 3A Wallmount Power Supply, Meet SAA, UL, GS, PSE, RoHS, Pass EMC, EMI, Mini Size
12V 3A Wallmount Power Supply, Meet SAA, UL, GS, PSE, RoHS, Pass EMC, EMI, Mini Size
12V 3A Wallmount Power Supply, Meet SAA, UL, GS, PSE, RoHS, Pass EMC, EMI, Mini Size

12V 3A Wallmount Power Supply, Meet SAA, UL, GS, PSE, RoHS, Pass EMC, EMI, Mini Size

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Fashionable design
    • Small size: 86 x 47.5 x 33mm
    • Low-ripple and noise
    • High-efficiency
    • Certifications: EMC EN55022B, FCC, GB9254 and VCCI
    • Safety certificates: UL/cUL, PSE, TUV, GS, CE, CCC, SAA
  • Specifications:
    • Input voltage: 100 to 240V AC, 50/60Hz
    • Output: 12V 3A
    • Output voltage: 5 to 24V
    • Output current: 0.5 to 3A
    • Output: voltage tolerance: ±5%, ripple and noise (mVp-p)<1%, turn on delay time less than 3 seconds, hold up time morethan 10-millisecond
    • Protections: short-circuit, over-current and over-voltage
    • Altitude: <3,000m
    • Insulation: hi-pot, 3,000V AC, 60 seconds and 10mA
    • Leakage current: 0.25mA (maximum)
    • MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
    • Operating temperature: up to 40°C, 10 to 90% RH
    • Storage temperature: -20 to 85°C, 10 to 90% RH
    • DC cord length: 1.2, 1.5, 1.8 and 2m
    • DC plug: 5.5 x 2.1, 5.5 x 2.5 and 3.5 x 1.35mm
  • Fashionable design
  • Small size: 86 x 47.5 x 33mm
  • Low-ripple and noise
  • High-efficiency
  • Certifications: EMC EN55022B, FCC, GB9254 and VCCI
  • Safety certificates: UL/cUL, PSE, TUV, GS, CE, CCC, SAA
  • Input voltage: 100 to 240V AC, 50/60Hz
  • Output: 12V 3A
  • Output voltage: 5 to 24V
  • Output current: 0.5 to 3A
  • Output: voltage tolerance: ±5%, ripple and noise (mVp-p)<1%, turn on delay time less than 3 seconds, hold up time morethan 10-millisecond
  • Protections: short-circuit, over-current and over-voltage
  • Altitude: <3,000m
  • Insulation: hi-pot, 3,000V AC, 60 seconds and 10mA
  • Leakage current: 0.25mA (maximum)
  • MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
  • Operating temperature: up to 40°C, 10 to 90% RH
  • Storage temperature: -20 to 85°C, 10 to 90% RH
  • DC cord length: 1.2, 1.5, 1.8 and 2m
  • DC plug: 5.5 x 2.1, 5.5 x 2.5 and 3.5 x 1.35mm
