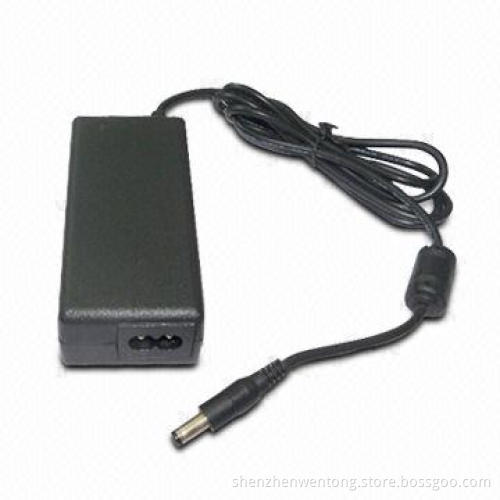

Desktop Power Adapter with 12V Voltage, 24W Power, 0.25mA Current and Measures 96 x 43.5 x 28.5mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Input voltage: 100 to 240V AC, 50/60Hz
Power: 24W
Voltage: 12V, 2A
Output: voltage tolerance ±5%, ripple and noise (mVp-p)less than 1%
Turn on delay time: less than 3 seconds
Hold up time: more than 10 milliseconds
Protection:
- Short-circuit protection
- Over-current protection and over-voltage
Operating temperature: 0 to 40°C
Humidity: 10 to 90% RH
Storage temperature: -20 to 85°C
Altitude: less than 3,000m
EMC: EN55022B, FCC, GB9254 and VCCI
Safety accord: UL/CUL, TUV/GS, CCC and SAA
Insulation: hi-pot, 3,000V AC, 60S, 10mA
Leakage current: 0.25mA (maximum)
MTBF: more than 50,000 hours
Configuration: desktop type
Dimensions: 96 x 43.5 x 28.5mm
