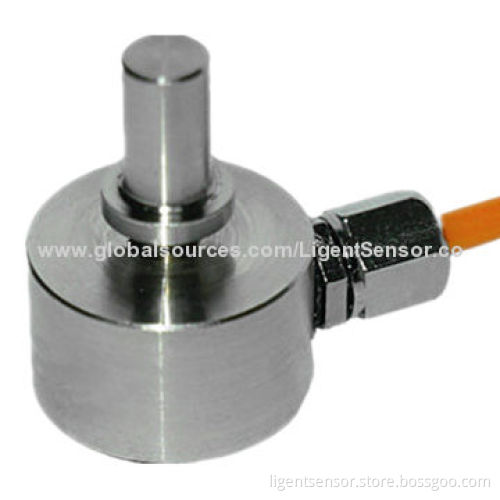

Miniature Compression and Tension Load Cell, Small Size and Easy to Install

Miniature Compression and Tension Load Cell, Small Size and Easy to Install

Get Latest Price

Payment Type:: T/T in Advance, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Features and applications:

Small size and easy to install
Fully sealed structure, good water resistance and high dynamic frequency
Mainly applied in tension and pressure testing instruments and automatic equipment fields, such as insertion force test instrument, riveting machine, welding machine, hot and cold lamination machine, feeling tester for keyboard switch
Capacities: 5, 10, 20, 30, 50 and 100kg

Specification:

Rated output: 1.0 to 1.5mV/V ±10%
Zero balance: ±2% FS
Non-linearity: 1.0 to 1% FS
Hysteresis: 1.0% FS
Repeatability: 1.0% FS
Creep (30 min.): 1.0% FS
Temperature effect on output: 1.0% FS/10°C
Temperature effect on zero: 1.0% FS/10°C
Input impedance: 350 ±5Ω
Output impedance: 350 ±10Ω
Insulation resistance: ≥5000MΩ/100V DC
Recommended excitation: 5V
Maximum excitation: 10V
Compensated temperature range: -10 to 60°C
Operating temperature range: -20 to 80°C
Safe overload: 120%
Ultimate overload: 150%
Cable size: Ø2 x 1.5m

Wire connection:

Ex +: red
Ex -: black
Output +: green
Output -: white
