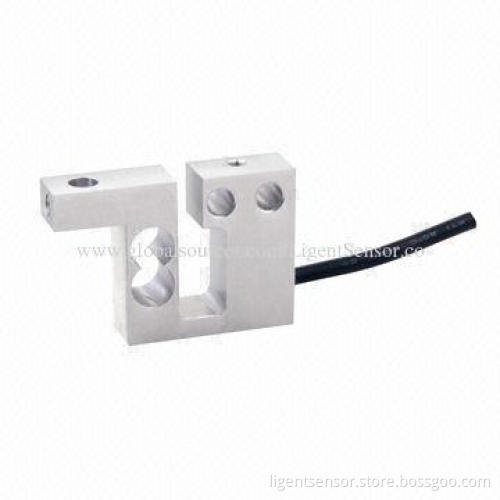

Aluminum S-type Load Cell

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Features and applications:

S-type structure, small size and easy to install
Aluminum materials with high accuracy and good stability
Mainly applied in tension and compression testing instruments and automatic equipment fields, textile machines and more
Capacities: 1, 2, 3, 5kg

Specifications:

Wire connection:

S-type structure, small size and easy to install

Aluminum materials with high accuracy and good stability

Mainly applied in tension and compression testing instruments and automatic equipment fields, textile machines and more

Capacities: 1, 2, 3, 5kg

Rated output: 2.0 ±10% mV/V

Zero balance: ±2% FS

Non-linearity: 0.03% FS

Hysteresis: 0.03% FS

Repeatability: 0.03% FS

Creep (30min): 0.03% FS

Temperature effect on output: 0.02% FS/10°C

Temperature effect on zero: 0.02% FS/10°C

Input impedance: 410 ±30Ω

Output impedance: 350 ±3Ω

Insulation: ≥5,000MΩ/100V DC

Recommended excitation: 10V

Maximum excitation: 15V

Compensated temperature range: -10 - 40°C

Operating temperature range: -20 - 60°C

Safe overload: 150%

Ultimate overload: 200%

Cable dimensions: Ø 3 x 8cm

Ex +: red

Ex -: black

Output +: green

Output -: white
