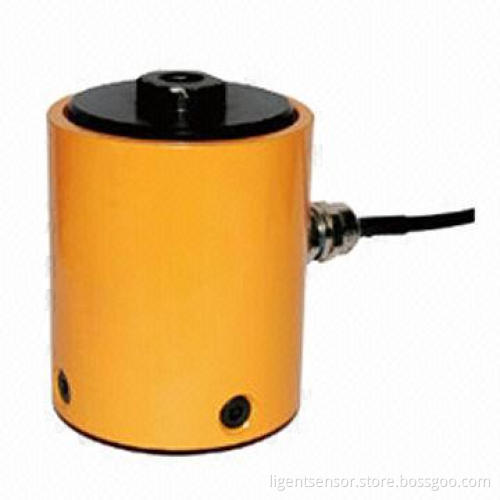

Column Load Cell
Column Load Cell

Column Load Cell

Get Latest Price
Payment Type:
Advanced TT, T/T, Paypal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Advanced TT, T/T, Paypal, Western Union
Product Description
Product Description
  • Features and applications:
    • Aluminum alloy material, sealed by silicone rubber
    • Anodized surface, good corrosion resistance
    • Compact structure, easy to install
    • Good dynamic response performance
    • Mainly applied in high precision electronic measurement system of tension and compression force
  • Capacity: 200kg-3T
  • Specification:
    • Rated output: 2.0 ± 1%mV/V
    • Zero balance: ± 2 % F.S.
    • Non-linearity: 0.05% F.S
    • Hysteresis: 0.05% F.S
    • Repeatability: 0.05% F.S
    • Creep (30min): 0.05 % F.S
    • Temp effect on output: 0.05 % F.S./10ºC
    • Temp effect on zero: 0.05% F.S./10ºC
    • Input impedance: 380 ± 10Ω
    • Output impedance: 350 ± 4Ω
    • Insulation: ≥5,000MΩ/100VDC
    • Recommended excitation: 5-10V
    • Maximum excitation: 15V
    • Compensated temperature range: -10-60ºC
    • Operation temperature range: -20-80ºC
    • Safe overload: 150%
    • Ultimate overload: 300%
    • Cable size: Ø 4 x 2m
    • Wire connection:
      • Ex+: red
      • Ex-: black
      • Output+: green
      • Output -: white
  • Aluminum alloy material, sealed by silicone rubber
  • Anodized surface, good corrosion resistance
  • Compact structure, easy to install
  • Good dynamic response performance
  • Mainly applied in high precision electronic measurement system of tension and compression force
  • Rated output: 2.0 ± 1%mV/V
  • Zero balance: ± 2 % F.S.
  • Non-linearity: 0.05% F.S
  • Hysteresis: 0.05% F.S
  • Repeatability: 0.05% F.S
  • Creep (30min): 0.05 % F.S
  • Temp effect on output: 0.05 % F.S./10ºC
  • Temp effect on zero: 0.05% F.S./10ºC
  • Input impedance: 380 ± 10Ω
  • Output impedance: 350 ± 4Ω
  • Insulation: ≥5,000MΩ/100VDC
  • Recommended excitation: 5-10V
  • Maximum excitation: 15V
  • Compensated temperature range: -10-60ºC
  • Operation temperature range: -20-80ºC
  • Safe overload: 150%
  • Ultimate overload: 300%
  • Cable size: Ø 4 x 2m
  • Wire connection:
    • Ex+: red
    • Ex-: black
    • Output+: green
    • Output -: white
  • Ex+: red
  • Ex-: black
  • Output+: green
  • Output -: white
