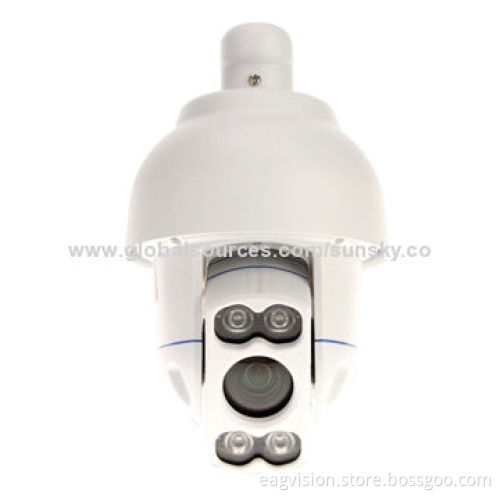

Wired LED Infrared HD Mini IP Outdoor IR PTZ Camera

Wired LED Infrared HD Mini IP Outdoor IR PTZ Camera

Get Latest Price

Payment Type:: T/T, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal or Western Union

Product Description

Adopt SONY high performance 1/2.8-inch 1.3MP CMOS

Support dual stream compression technology

Rotate 360° in horizontal direction, driven by exact engine, operate stably with precise position-setting

The rotation speed can be adjustable according to the zoom rate of camera lens, auto-focus, auto white balance

Built-in OSD

Several control protocols are compatible and baud rate is adjustable

Vertical 90° continuous monitoring after auto reversing 180°

Parameter:

Signal model: PAL/NTSC
Image sensor: 1/2.8-inch Sony CMOS
Effective pixel: 1280 x 720
Horizontal resolution: 720P
Minimum illumination: color to B/W
- Color: 0.1 lux
- B/W: 0.01 lux
S/N ratio: >60dB (enhanced)
Backlight compensation: on/off
White balance: auto
Electronic shutter:
- PAL: 1/25-1/100000 seconds
- NTSC: 1/30-1/100000 seconds
Focus length: 3.9-39mm
Optical focus: 10X
Focus: auto/manual/push auto, use of high-performance DSP to realize complete digit and ultra-high speed focus function
Presets: 256
IR distance: 50m
Protection level: IP66
Patrol track: 4 groups, each can record 200 actions
Cruise track: yotal 30 presets can join cruise, can setting the presets' residence time
Other scan: support horizontal scan, deuce area scan, scan random
Rotation range: horizontal 360° unlimited rotation, vertical 90°, auto reversal
Rotation speed: horizontal and vertical
- Minimum: 0.01°
- Maximum: 200°/S
Video compression: H.264 main profile encoding, MJPEG/JPEG baseline encoding
Audio compression: G.711, G.726, support 32K stereo
Primary stream: 1280 x 720 pixels, 25fps
Secondary stream: 640 x 480 pixels, 25fps
Video bit rate: 32Kbps-16Mbps continuously adjustable, support CBR/VBR
Network protocol: TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
ONVIF support: supported
Power supply: DC 12V/3A
Work environment: -20-50°C (select temperature control accessories), <95% RH
Package size: 34.7 x 26.5 x 21cm
Package weight: 2.76kg
OEM orders are welcome
Can print customer's artwork and logo
Type of packing: color box

Signal model: PAL/NTSC

Image sensor: 1/2.8-inch Sony CMOS

Effective pixel: 1280 x 720

Horizontal resolution: 720P

Minimum illumination: color to B/W

Color: 0.1 lux
B/W: 0.01 lux

S/N ratio: >60dB (enhanced)

Backlight compensation: on/off

White balance: auto

Electronic shutter:

PAL: 1/25-1/100000 seconds
NTSC: 1/30-1/100000 seconds

Focus length: 3.9-39mm

Optical focus: 10X

Focus: auto/manual/push auto, use of high-performance DSP to realize complete digit and ultra-high speed focus function

Presets: 256

IR distance: 50m

Protection level: IP66

Patrol track: 4 groups, each can record 200 actions

Cruise track: yotal 30 presets can join cruise, can setting the presets' residence time

Other scan: support horizontal scan, deuce area scan, scan random

Rotation range: horizontal 360° unlimited rotation, vertical 90°, auto reversal

Rotation speed: horizontal and vertical

Minimum: 0.01°
Maximum: 200°/S

Video compression: H.264 main profile encoding, MJPEG/JPEG baseline encoding

Audio compression: G.711, G.726, support 32K stereo

Primary stream: 1280 x 720 pixels, 25fps

Secondary stream: 640 x 480 pixels, 25fps

Video bit rate: 32Kbps-16Mbps continuously adjustable, support CBR/VBR

Network protocol: TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP

ONVIF support: supported

Power supply: DC 12V/3A

Work environment: -20-50°C (select temperature control accessories), <95% RH

Package size: 34.7 x 26.5 x 21cm

Package weight: 2.76kg

OEM orders are welcome

Can print customer's artwork and logo

Type of packing: color box

Color: 0.1 lux

B/W: 0.01 lux

PAL: 1/25-1/100000 seconds

NTSC: 1/30-1/100000 seconds

Minimum: 0.01°

Maximum: 200°/S
