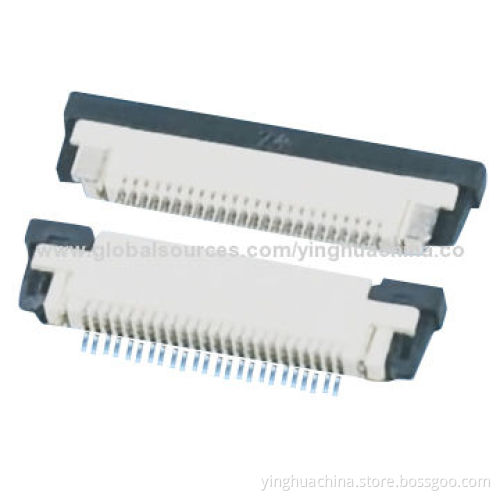

FPC/FFC Connectors, 0.5mm Pitch, Upper Contact SMT and Normal Layout Mounting Types, 0.4A/50V, 3943
  • FPC/FFC Connectors, 0.5mm Pitch, Upper Contact SMT and Normal Layout Mounting Types, 0.4A/50V, 3943
  • FPC/FFC Connectors, 0.5mm Pitch, Upper Contact SMT and Normal Layout Mounting Types, 0.4A/50V, 3943
FPC/FFC Connectors, 0.5mm Pitch, Upper Contact SMT and Normal Layout Mounting Types, 0.4A/50V, 3943
FPC/FFC Connectors, 0.5mm Pitch, Upper Contact SMT and Normal Layout Mounting Types, 0.4A/50V, 3943

FPC/FFC Connectors, 0.5mm Pitch, Upper Contact SMT and Normal Layout Mounting Types, 0.4A/50V, 3943

Get Latest Price
Payment Type:
T/T or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or PayPal
Product Description
Product Description
  • Specifications:
    • Pitch: 0.5mm
    • Normal layout mounting types FPC/FFC connector
    • Product number: 3943
    • Contact numbers: 06-50
    • Upper contact SMT type
    • Rated current: 0.4A
    • Rated voltage: 50V
    • Withstand voltage: 200V AC/minute
    • Contact resistance: <20mΩ
    • Insulation resistance: 500mΩ
    • Working temperature: -20 to +85°C
    • Materials:
      • Plastic: LCP, UL94V-0
      • Lock: PPS, UL94V-0, less 30 pins using PPS, over 30 pins using LCP
      • Terminal: phosphor bronze, tin plating
      • Solder tab: phosphor bronze, tin plating
  • Packing:
    • Tape and reel
    • Pipe
  • Pitch: 0.5mm
  • Normal layout mounting types FPC/FFC connector
  • Product number: 3943
  • Contact numbers: 06-50
  • Upper contact SMT type
  • Rated current: 0.4A
  • Rated voltage: 50V
  • Withstand voltage: 200V AC/minute
  • Contact resistance: <20mΩ
  • Insulation resistance: 500mΩ
  • Working temperature: -20 to +85°C
  • Materials:
    • Plastic: LCP, UL94V-0
    • Lock: PPS, UL94V-0, less 30 pins using PPS, over 30 pins using LCP
    • Terminal: phosphor bronze, tin plating
    • Solder tab: phosphor bronze, tin plating
  • Plastic: LCP, UL94V-0
  • Lock: PPS, UL94V-0, less 30 pins using PPS, over 30 pins using LCP
  • Terminal: phosphor bronze, tin plating
  • Solder tab: phosphor bronze, tin plating
  • Tape and reel
  • Pipe
