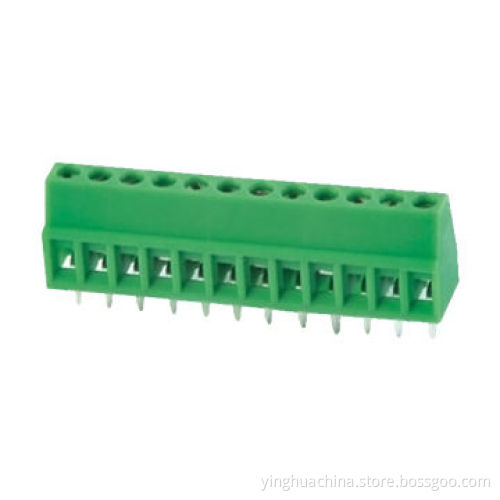

Terminal Block, PCB, Pitch 2.54mm, Poles 2P/30P, 24-12AWG, 150V/6A, 5-6mm Strip Length
  • Terminal Block, PCB, Pitch 2.54mm, Poles 2P/30P, 24-12AWG, 150V/6A, 5-6mm Strip Length
  • Terminal Block, PCB, Pitch 2.54mm, Poles 2P/30P, 24-12AWG, 150V/6A, 5-6mm Strip Length
Terminal Block, PCB, Pitch 2.54mm, Poles 2P/30P, 24-12AWG, 150V/6A, 5-6mm Strip Length
Terminal Block, PCB, Pitch 2.54mm, Poles 2P/30P, 24-12AWG, 150V/6A, 5-6mm Strip Length

Terminal Block, PCB, Pitch 2.54mm, Poles 2P/30P, 24-12AWG, 150V/6A, 5-6mm Strip Length

Get Latest Price
Payment Type:
T/T or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or PayPal
Product Description
Product Description
  • Pitch: 2.54mm
  • Poles: 2P/30P
  • Screws: M1.6/steel/Ni-plated
  • Pin header: brass/tin-plated
  • Wire cage: brass/Ni-plated
  • Housing: PA66.UL94V-0
  • Rated voltage: 150V
  • Rated current: 6A
  • Withstanding voltage: 1,250V AC/1min
  • Wire range: 24-12AWG
  • Temperature range: -40 to +105 degrees C
  • Maximum soldering: +250 degrees C for 5sec
  • Torque: 0.1Nm (0.88lb.in)
  • Strip length: 5-6mm
