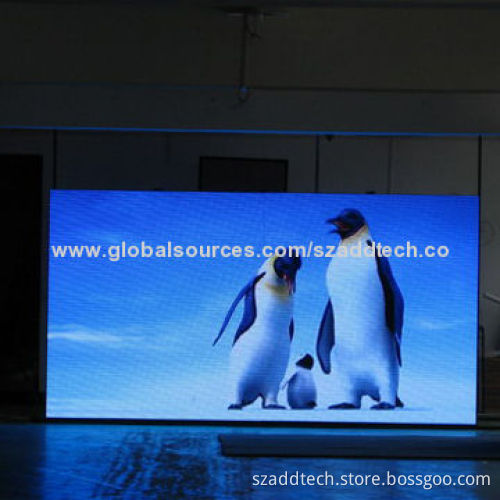

P3mm Indoor SMD Full Color LED Display Screen, Pixel Density is 111,111 LEDs/m²

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Pixel pitch: 3mm

Module size: 288mm x 288mm

Driving method: 1/16 SCAN

Pixel configuration: 1R1G1B

LED type: SMD 2020

Drive IC: 16 bit constant current with current gain control

Pixel/module :96x96

Cabinet dimensions:

Pixel density: 36,864 LEDs/cabinet (192x192) 111,111 LEDs/m²

Brightness: 2,400 nits

Frame refresh rate: e60Hz

Data refresh rate: 480Hz

Power consumption: 1560 W/M2 (max) 530 -780W/m² (average)

Horizontal viewing angle: 120°

Vertical viewing angle: 100°-120°

Serviceability: back

I P grade: IP32

MTBF: e10000 hours

Lifespan: 50,000 hours

Pixel failure:< 0.0002

Operation power supply: 5V, 60A

Weight/cabinet: 12kg

Software: LED studio (MDK)

Optional for upgrade:

Ultra-High refresh rate (greater than 1200Hz) with software adjustable, suitable for filming
High gray scale (16 bits) with realistic visual performance
On-site pixel by pixel brightness and color correction bring greater uniformity

Width: 576mm

Height: 576mm

Depth: 80mm

Ultra-High refresh rate (greater than 1200Hz) with software adjustable, suitable for filming

High gray scale (16 bits) with realistic visual performance

On-site pixel by pixel brightness and color correction bring greater uniformity
