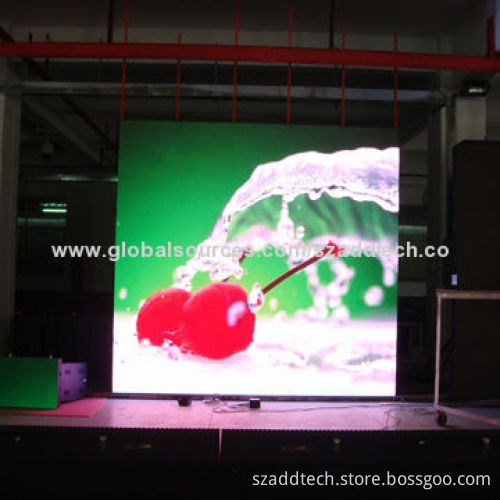

Indoor LED Panel for Rental Use, Size can be Customized

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED module specifications:

LED cabinet specifications (standard cabinet):

LED screen parameters:

Refreshing frequency: 1000Hz

Input voltage full range: 110 to 240V AC, 50/60Hz

Power consumption maximum: 1,000W/¡

Average: 400 to 800 W/¡

Defects rate: d0.00001

MTBF: >5,000 hours

Lifespan: e100,000 hours

Protection grade: IP43

Operating temperature: 20 to +60°C

Operating humidity: 10 to 95%

Operating system: Microsoft's Windows 98/ME/2000/NT/XP

Video processor: HDMI®, HD-SDI, DVI,VGA

Pixel pitch: 4mm

Pixel configuration: RGB (SMD 3-in-1)

Module resolution: 32 x 32 pixels dots

Module size: 128 x 128mm

Cabinet size (W x H): 640 x 640mm

Cabinet resolution: 160 x 160 pixels dots

Module quantity: 25 pieces

Cabinet frame material: black powder-coated steel (aluminum for option)

Cabinet weight: 18kg

LED screen resolution: 62,500 dots/¡

LED screen brightness: 2,000 nits

Brightness adjustment manually by software

Driving method constant current: 1/16

Viewing angle:

Optimum viewing distance: 3 meters

Horizontal: 120°

Vertical: 120°
