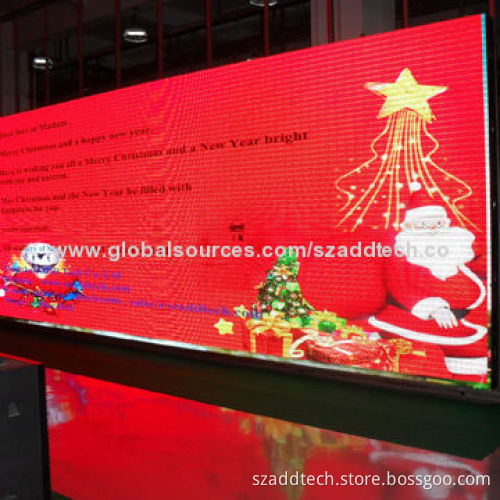

Outdoor LED Panel Display with 10mm Pixel Pitch
  • Outdoor LED Panel Display with 10mm Pixel Pitch
Outdoor LED Panel Display with 10mm Pixel Pitch

Outdoor LED Panel Display with 10mm Pixel Pitch

Get Latest Price
Payment Type:
T/T or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or Western Union
Product Description
Product Description
  • Technical specifications:
    • LED module specifications:
      • Pixel pitch: 10mm
      • Pixel configuration: 1R1G1B
      • Module resolution: 16 x 16 dots
      • Module size: 160 x 160mm
    • LED cabinet specifications (standard cabinet):
      • Cabinet size(W x H): 960 x 960mm
      • Cabinet resolution: 96 x 96 pixel dots
      • Module quantity: 36pcs
      • Cabinet frame: material black powder-coated steel
      • Cabinet weight: 55kg
  • Screen parameters:
    • Screen resolution: 10,000 dots/m²
    • Screen brightness: 8000 nits
    • Brightness adjustment: manually or automatically
    • Driving method constant current: 1/4
    • Viewing angle: horizontal 110°, vertical 60°
    • Optimum viewing distance: 5m to 200m
    • Refreshing frequency: 1500Hz (adjustable by software)
    • Input voltage: AC 220V/50Hz or AC 110V/60Hz
    • Power consumption: maximum 1200W/m², average 400 to 800W/m²
    • Defects rate: ≤0.00001
    • MTBF: >5000 hours
    • Lifespan: ≥100,000 hours
    • Protection grade: IP65
    • Operating temperature: ﹣40 to 60°C
    • Operating humidity: 10 to 95%
    • Operating system: Windows98/Me/2000/NT/XP
  • Packaging details:
    • Packing material: wooden box or flight case
    • Screen weight: 60kg/m²
    • Packing way: one case holds one or two cabinets
  • LED module specifications:
    • Pixel pitch: 10mm
    • Pixel configuration: 1R1G1B
    • Module resolution: 16 x 16 dots
    • Module size: 160 x 160mm
  • LED cabinet specifications (standard cabinet):
    • Cabinet size(W x H): 960 x 960mm
    • Cabinet resolution: 96 x 96 pixel dots
    • Module quantity: 36pcs
    • Cabinet frame: material black powder-coated steel
    • Cabinet weight: 55kg
  • Pixel pitch: 10mm
  • Pixel configuration: 1R1G1B
  • Module resolution: 16 x 16 dots
  • Module size: 160 x 160mm
  • Cabinet size(W x H): 960 x 960mm
  • Cabinet resolution: 96 x 96 pixel dots
  • Module quantity: 36pcs
  • Cabinet frame: material black powder-coated steel
  • Cabinet weight: 55kg
  • Screen resolution: 10,000 dots/m²
  • Screen brightness: 8000 nits
  • Brightness adjustment: manually or automatically
  • Driving method constant current: 1/4
  • Viewing angle: horizontal 110°, vertical 60°
  • Optimum viewing distance: 5m to 200m
  • Refreshing frequency: 1500Hz (adjustable by software)
  • Input voltage: AC 220V/50Hz or AC 110V/60Hz
  • Power consumption: maximum 1200W/m², average 400 to 800W/m²
  • Defects rate: ≤0.00001
  • MTBF: >5000 hours
  • Lifespan: ≥100,000 hours
  • Protection grade: IP65
  • Operating temperature: ﹣40 to 60°C
  • Operating humidity: 10 to 95%
  • Operating system: Windows98/Me/2000/NT/XP
  • Packing material: wooden box or flight case
  • Screen weight: 60kg/m²
  • Packing way: one case holds one or two cabinets
