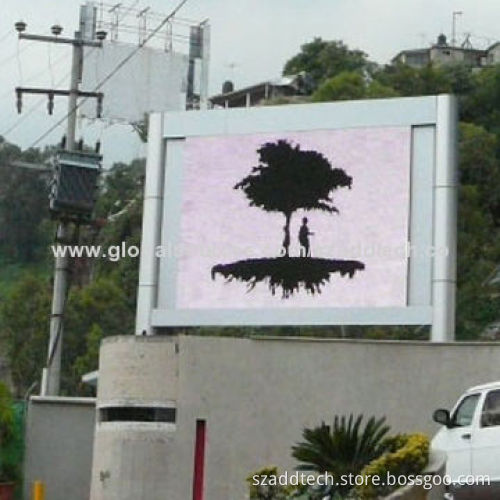

LED Video Wall Screen with Ultra Brightness, Can be Used Under Direct Sunlight

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Technical specification:

LED lamp parameters:
- LED lamps: DIP 346, oval

Wavelength:

Red LED: 620 to 630nm
Green LED: 520 to 535nm
Blue LED: 465 to 475nm

LED module specifications:

Pixel pitch: 16mm
Pixel configuration: 1R, 1G, 1B
Module resolution: 16 x 8-pixel dots
Module size: 256mm x 128mm

LED cabinet specifications (standard cabinet ):

Cabinet size (W x H x D): 1024mm x 1024mm x 175mm
Cabinet resolution: 64 x 64 pixel dots
Module quantity: 32 pieces
Cabinet frame material: black powder-coated steel
Cabinet weight: 63kg

Screen parameters:

LED display screen resolution: 3,906 dots/m²
LED display screen brightness: 9,500 nits
Brightness adjustment manually or automatically
Driving method: constant current/static
View angle: horizontal: 120°, vertical: 60°
Optimum viewing distance: 15 to 300m
Refreshing frequency: 1,500Hz (adjustable by software)
Input voltage: 220V AC, 50Hz or 110V AC, 60Hz
Power consumption maximum: 1,500W/m², average: 500 to 1,000W/m²
Defects rate: ≤0.00001
MTBF: ≥5,000 hours
Lifespan: ≥100,000 hours
Protection grade: IP65
Operating temperature: -40 to 60°C
Humidity-operating: 10 to 95%
Operating system: Windows 98, Me, 2000, NT and XP

LED lamp parameters:

LED lamps: DIP 346, oval

LED lamps: DIP 346, oval

Red LED: 620 to 630nm

Green LED: 520 to 535nm

Blue LED: 465 to 475nm

Pixel pitch: 16mm

Pixel configuration: 1R, 1G, 1B

Module resolution: 16 x 8-pixel dots

Module size: 256mm x 128mm

Cabinet size (W x H x D): 1024mm x 1024mm x 175mm

Cabinet resolution: 64 x 64 pixel dots

Module quantity: 32 pieces

Cabinet frame material: black powder-coated steel

Cabinet weight: 63kg

LED display screen resolution: 3,906 dots/m²

LED display screen brightness: 9,500 nits

Brightness adjustment manually or automatically

Driving method: constant current/static

View angle: horizontal: 120°, vertical: 60°

Optimum viewing distance: 15 to 300m

Refreshing frequency: 1,500Hz (adjustable by software)

Input voltage: 220V AC, 50Hz or 110V AC, 60Hz

Power consumption maximum: 1,500W/m², average: 500 to 1,000W/m²

Defects rate: ≤0.00001

MTBF: ≥5,000 hours

Lifespan: ≥100,000 hours

Protection grade: IP65

Operating temperature: -40 to 60°C

Humidity-operating: 10 to 95%

Operating system: Windows 98, Me, 2000, NT and XP
