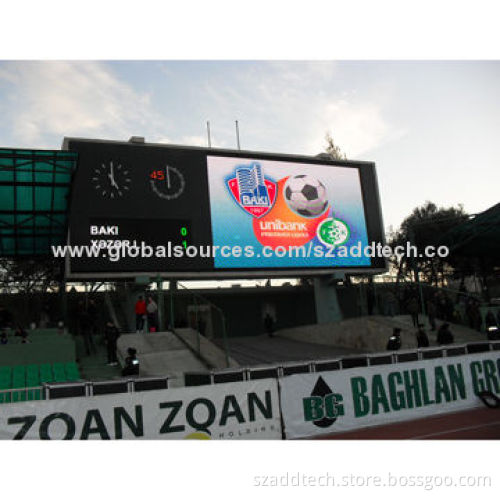

P16mm Outdoor LED Video Wall Screen, Installed in Stadium

P16mm Outdoor LED Video Wall Screen, Installed in Stadium

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

LED module:

Module size: 256 x 128mm
Module resolution: 16 x 8-pixel dots

LED cabinet:

LED cabinet size: 1024 x 1024 x 175mm
LED cabinet pixel resolution: 64 x 64-pixel dots
LED cabinet material: black powder-coated steel
LED cabinet protection: level IP65
LED cabinet design: PnP (Plug-and-play)
LED cabinet weight: 62kg each unit

More specifications:

Pixel resolution: 3906-pixel dots/square meter
Brightness: 9000 nits
Color temperature: 5000-9300K (adjustable by software )
LED screen brightness: adjustable by software at 100 levels
Viewing angle: horizontal: 120°, vertical: 60°
Viewing distance: 5-150 meters
Scanning mode: static
Driving mode: constant current
Gray scale: 4096
Showing colors: 68-billion kinds
Refreshing frequency: 1000Hz (adjustable by software)
Picture display mode: dots-to-dots display, synchronous with CRT
Signal interface: DVI
Input signal; RF, S-video, RGB, RGBHV, YUV, YC and more
Operating system for software: Windows XP/Windows 7/Vista
Brand of control card: LINSN
LED Software: LED studio
Working temperature: -20-60℃
Heat treatment and ventilation: built-in fans
Relative humidity: 10-95%
LED lifespan: ≥5000 hours
MTBF ≥5000 hours
Out of controlled pixel dots: <0.0001
Whole screen flatness: less than 1mm error the juncture
Maintenance way: module replacement and LED changing
Input power voltage (full range): 110-240V AC, 50/60Hz
Power consumption: average of 5-8 kilowatts/maximum of 12 kilowatts

Module size: 256 x 128mm

Module resolution: 16 x 8-pixel dots

LED cabinet size: 1024 x 1024 x 175mm

LED cabinet pixel resolution: 64 x 64-pixel dots

LED cabinet material: black powder-coated steel

LED cabinet protection: level IP65

LED cabinet design: PnP (Plug-and-play)

LED cabinet weight: 62kg each unit

Pixel resolution: 3906-pixel dots/square meter

Brightness: 9000 nits

Color temperature: 5000-9300K (adjustable by software )

LED screen brightness: adjustable by software at 100 levels

Viewing angle: horizontal: 120°, vertical: 60°

Viewing distance: 5-150 meters

Scanning mode: static

Driving mode: constant current

Gray scale: 4096

Showing colors: 68-billion kinds

Refreshing frequency: 1000Hz (adjustable by software)

Picture display mode: dots-to-dots display, synchronous with CRT

Signal interface: DVI

Input signal; RF, S-video, RGB, RGBHV, YUV, YC and more

Operating system for software: Windows XP/Windows 7/Vista

Brand of control card: LINSN

LED Software: LED studio

Working temperature: -20-60℃

Heat treatment and ventilation: built-in fans

Relative humidity: 10-95%

LED lifespan: ≥5000 hours

MTBF ≥5000 hours

Out of controlled pixel dots: <0.0001

Whole screen flatness: less than 1mm error the juncture

Maintenance way: module replacement and LED changing

Input power voltage (full range): 110-240V AC, 50/60Hz

Power consumption: average of 5-8 kilowatts/maximum of 12 kilowatts
